A Field-Programmable Gate Array (FPGA) is an integrated circuit that can be programmed to perform a wide range of tasks. Unlike ASICs (Application-Specific Integrated Circuits), FPGAs offer flexibility, allowing designers to reprogram the logic and architecture at any stage of development. This flexibility makes them an ideal choice for applications that require frequent updates or custom logic implementations, such as communications, automotive, and industrial applications.
FPGAs are used for tasks involving signal processing, computation, and even high-performance computing (HPC), offering a balance between the customizability of hardware and the programmability of software.
Xilinx is one of the leading manufacturers of FPGAs and offers a broad range of products to cater to different application needs. Their FPGA families include:
The Virtex 7 family, part of the 7 Series, stands out for its exceptional performance, speed, and scalability, making it the preferred choice for many advanced applications.
Xilinx Virtex 7 FPGAs are designed for high-performance applications requiring advanced capabilities in terms of speed, logic density, and processing power. They provide a powerful combination of hardware and software programmability, making them suitable for industries such as telecommunications, aerospace, defense, and high-performance computing (HPC). Virtex 7 offers the perfect balance between flexibility, scalability, and raw performance, with key enhancements over previous generations.
Virtex 7 FPGAs excel in parallel processing, enabling them to execute multiple tasks simultaneously. This parallelism is essential for applications such as real-time data processing, image processing, and signal processing. Virtex 7’s architecture includes a large number of logic cells, which can be used to implement complex algorithms with minimal latency.
The DSP slices in Virtex 7 FPGAs are designed for high-speed arithmetic operations, such as multiplication and accumulation. These DSP units are optimized for tasks like digital filtering, FFTs (Fast Fourier Transforms), and video/image processing. The integrated logic elements (LUTs and flip-flops) ensure that even the most complex digital designs can be realized within the FPGA.
Virtex 7 FPGAs come equipped with high-speed serial transceivers, enabling them to achieve data rates of up to 28.05 Gbps. These transceivers support multiple protocols such as Ethernet, PCIe, and Serial RapidIO, making them ideal for high-bandwidth applications like 100G Ethernet and data center communications.
Virtex 7 FPGAs feature high-performance memory blocks, including Block RAM for efficient, on-chip storage and UltraRAM, which offers even greater capacity. This architecture helps improve data throughput and reduce latency in memory-intensive applications such as video processing and machine learning.
At the core of every FPGA is its logic cells, which can be configured to implement combinational and sequential logic. Virtex 7 uses a combination of LUTs (Look-Up Tables) and flip-flops to provide programmable logic. These cells can be configured to perform complex operations like bitwise logic, arithmetic, and state machines.
Virtex 7 incorporates a large number of DSP slices, which are specialized hardware blocks optimized for high-speed arithmetic operations. These blocks are essential for applications that require real-time signal processing, such as filtering, modulation, and Fourier transforms. The DSP slices in Virtex 7 provide significant computational power while maintaining low latency.
Virtex 7 FPGAs include MMCMs (Mixed-Mode Clock Managers) and PLLs (Phase-Locked Loops) that provide fine-grained control over clock frequencies. These resources help manage multiple clock domains, synchronize timing across different components, and ensure that the FPGA operates at the desired speed.
Virtex 7’s high-speed serial transceivers support a wide range of communication protocols, including PCIe, Ethernet, and Serial RapidIO. The FPGA’s I/O blocks are also highly configurable, offering high-density connections that are suitable for high-performance communication systems, data centers, and network infrastructure.
The Virtex 7 FPGAs are part of the 7-series, which includes a range of devices optimized for various performance requirements. These devices are available in multiple densities, from mid-range to ultra-high-density versions, enabling designers to choose the right balance between cost and performance.
Virtex 7 offers three major variants:
These variants provide flexibility in selecting the right FPGA for different application needs.
Xilinx provides the Vivado Design Suite, a comprehensive set of design tools for developing applications with Virtex 7 FPGAs. Vivado includes features like synthesis, simulation, and implementation tools, all integrated into a single platform for efficient design development. It supports high-level design abstraction, such as RTL (Register Transfer Level) design, and enables integration with hardware description languages (HDL) like VHDL and Verilog.
Vivado allows engineers to create custom hardware designs and interface them with existing hardware systems. The suite supports IP integration, allowing users to leverage Xilinx’s extensive library of pre-designed intellectual property (IP) cores to simplify and accelerate development.
Xilinx provides a wide range of pre-configured IP cores for standard functions such as memory controllers, communication protocols, DSP functions, and security features. These IP cores save time by providing ready-to-use solutions that can be easily integrated into custom FPGA designs.
Virtex 7 FPGAs are designed with power efficiency in mind, employing techniques such as Dynamic Voltage Scaling (DVS) and Power Gating to reduce power consumption. These methods allow the FPGA to adjust its power usage based on the workload, maintaining high performance when needed while reducing power usage during idle periods.
In benchmark tests, Virtex 7 FPGAs consistently outperform other high-end FPGAs, particularly in applications like high-speed data processing and networking. The architecture’s ability to handle large volumes of data with minimal latency makes it a preferred choice for applications such as 100G Ethernet switching, video processing, and scientific simulations.
Virtex 7 FPGAs are integral to modern communication systems. They provide the high-speed transceivers and low-latency performance required in 5G networks, data centers, and high-frequency trading. Their ability to handle large amounts of data with minimal delay makes them ideal for networking applications where performance is critical.
In automotive and aerospace industries, Virtex 7 FPGAs are used in Advanced Driver Assistance Systems (ADAS), autonomous vehicles, and avionics systems. Their processing power and real-time processing capabilities are essential for tasks like radar signal processing, video analytics, and flight control systems.
Virtex 7’s parallel processing power is leveraged in high-performance computing (HPC) applications. These FPGAs can accelerate scientific simulations, data analysis, and machine learning, making them invaluable for genomics, weather modeling, and cryptography.
In industrial automation and embedded systems, Virtex 7 FPGAs enable real-time data processing, control, and monitoring. Applications include robotics, industrial sensors, and predictive maintenance.
While Spartan FPGAs are cost-effective and suitable for simpler tasks, and Kintex FPGAs offer a balance between performance and cost, Virtex 7 FPGAs are built for high-end applications where performance, density, and speed are crucial. The Virtex 7 family outperforms Spartan and Kintex in terms of speed (data rates, clock speed) and logic density (number of logic cells and DSP slices).
Virtex UltraScale FPGAs, the successor to Virtex 7, offer enhanced features like higher performance, larger capacity, and advanced power management. However, Virtex 7 still holds its ground due to its lower cost and sufficient performance for many high-end applications.

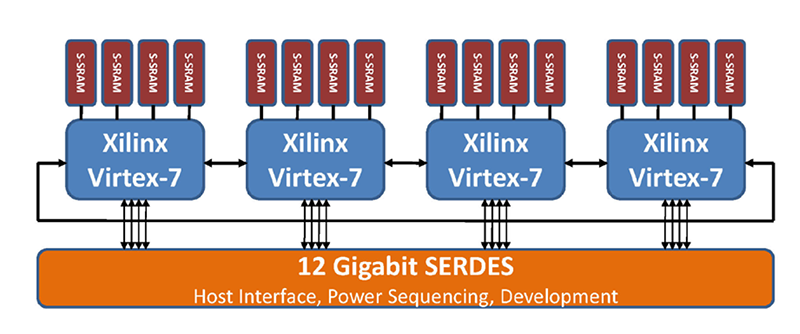

Integrating Virtex 7 FPGAs into a system requires careful consideration of how the FPGA will communicate with external components like microprocessors, memory modules, and peripheral devices. The high-speed transceivers and flexible I/O interfaces on Virtex 7 FPGAs make them capable of supporting various communication protocols, such as PCIe, Ethernet, and Serial RapidIO.
For example, when interfacing with a microprocessor, the FPGA can function as a co-processor to offload computational tasks or handle specialized processing, such as digital signal processing (DSP), video encoding, or encryption. Memory interfacing can be done through the use of high-bandwidth DDR3/DDR4 controllers integrated into the FPGA, ensuring fast data transfer between the FPGA and system memory.
One of the key challenges when designing FPGA-based systems is ensuring signal integrity and efficient routing. Virtex 7 FPGAs provide advanced clock management tools, such as MMCM and PLLs, to help maintain stable signals across long distances, especially in high-speed designs. Designers also need to be mindful of routing resources, ensuring that signals are routed efficiently to avoid congestion and delays.
In high-speed applications, such as 5G infrastructure or high-frequency trading systems, even slight disruptions in signal integrity can lead to performance degradation. Therefore, it is essential to use techniques like controlled impedance traces and via stitching to minimize signal reflections and cross-talk.

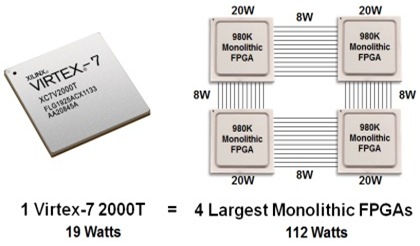

Xilinx Virtex 7 FPGAs support 3D ICs (Integrated Circuits), a technology that allows multiple die to be stacked in a single package. This innovation helps to improve performance, reduce power consumption, and increase device density without increasing the overall footprint. 3D stacking provides greater flexibility in packing more logic and memory onto the same chip, which is crucial for applications requiring extreme performance in limited space, such as aerospace and military systems.
Security is a critical aspect of many modern applications, from data centers to military communications. Virtex 7 FPGAs come with built-in security features like AES encryption (Advanced Encryption Standard) and RSA public-key encryption, which help protect sensitive data from unauthorized access or tampering.
These hardware-accelerated cryptographic features ensure that Virtex 7 FPGAs can be used in secure communications, digital rights management (DRM), and blockchain applications, offering high-speed encryption and decryption without the computational overhead typically associated with software-based cryptography.
While Xilinx Virtex 7 FPGAs provide immense power and flexibility, they also come with a steep learning curve, especially for beginners. The process of designing for FPGA architecture involves hardware description languages (HDLs) such as VHDL or Verilog, which may be unfamiliar to software engineers accustomed to high-level programming languages.
Additionally, the design complexity increases as the size and scale of the FPGA grow. Advanced features like timing analysis, power optimization, and signal routing require a solid understanding of FPGA architecture and system-level design principles.
Debugging and verification are significant challenges in FPGA design. The ability to simulate and test designs on hardware is crucial, especially in high-stakes applications like aerospace or automotive systems. Vivado Design Suite offers tools like logic analyzers and in-system debugging to help engineers identify and resolve issues during the design process.
Moreover, designers must ensure that the FPGA design meets all functional requirements and performs reliably across a wide range of operating conditions. Using simulation tools and applying formal verification techniques can help ensure that the design works correctly before deployment.
The cost of Xilinx Virtex 7 FPGAs depends on several factors, including the die size, the number of logic cells, the amount of memory and DSP resources, and the performance requirements. Larger devices with more resources, such as those in the HT family, tend to be more expensive than smaller versions like the LX or LXT families.
Other factors that influence the cost include the required transceiver speeds, the integrated IP cores, and the overall power consumption. For instance, an FPGA designed for 5G communications or high-frequency trading may demand high-performance features such as ultra-fast transceivers and large memory blocks, driving up the cost.
When compared to other high-end FPGAs, such as those from Intel's Stratix series or Microsemi's PolarFire family, Virtex 7 is often positioned as a high-performance yet relatively cost-effective solution for advanced applications. While newer FPGA families, like Virtex UltraScale, may offer more advanced features and greater performance, Virtex 7 still provides a solid balance between cost and capability, especially for applications that don’t require the absolute latest technology.
The future of FPGA technology is being shaped by the growing demands of artificial intelligence (AI), machine learning (ML), and 5G communications. As these technologies advance, FPGAs like the Virtex 7 will continue to evolve to meet the processing power and low-latency requirements of these applications.
In particular, AI/ML accelerators and edge computing applications will see increased use of FPGA-based solutions for real-time data processing and inference tasks. FPGAs are well-suited for these environments due to their ability to execute parallel tasks efficiently, making them ideal for AI workloads such as image recognition, data analytics, and sensor fusion.
Xilinx is at the forefront of the FPGA industry, constantly pushing the boundaries of what is possible in terms of performance, power efficiency, and integration. With the acquisition of Altera (Intel’s FPGA division), and their continued focus on next-generation architectures like Virtex UltraScale and Versal, Xilinx is shaping the future of FPGAs to meet the increasing demands of emerging technologies.
The company’s strong emphasis on hardware-software integration and AI-driven design tools makes Xilinx a key player in the next generation of FPGA solutions.
Virtex 7 FPGAs are primarily used in high-performance computing, 5G communications, aerospace, defense, and networking. Their high-speed transceivers and powerful processing capabilities make them ideal for tasks such as real-time data processing, signal processing, and video analytics.
Compared to other high-performance FPGAs, such as Intel’s Stratix series, Virtex 7 offers a solid balance between cost and performance. It excels in applications requiring high-speed I/O, large logic capacity, and powerful DSP slices. However, newer families like Virtex UltraScale offer more advanced features and higher performance.
The primary tool for designing with Virtex 7 is Vivado Design Suite, which includes tools for synthesis, simulation, and hardware debugging. Vivado integrates with HDL languages (VHDL, Verilog) and offers an extensive library of pre-built IP cores to speed up development.
Xilinx Virtex 7 FPGAs offer exceptional performance, flexibility, and power efficiency, making them suitable for a wide range of high-end applications. With advanced features such as high-speed serial transceivers, integrated DSP slices, and extensive memory resources, Virtex 7 provides the computational power needed for demanding tasks in industries like telecommunications, aerospace, and high-performance computing.
While the Virtex 7 family may not be the latest generation of FPGAs from Xilinx, it remains a powerful and cost-effective solution for many high-performance applications. As FPGA technology continues to evolve, Virtex 7 will continue to be a reliable choice for engineers looking for a flexible, high-performance solution. Its role in AI, 5G, and advanced computing will ensure it remains a key player in the FPGA landscape for years to come.
