LFMXO5-25-7BBG256I

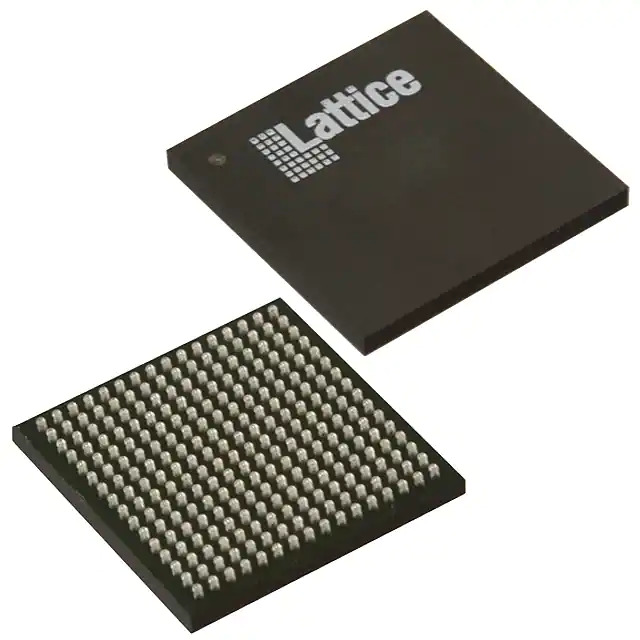

Images are for reference only.

LFMXO5-25-7BBG256I

Manufacturer:
Lattice Semiconductor
Package/Case:
256-LFBGA
RoHS:
Lifecycle:
Stock Resource:
In Stock
Datasheet:
LFMXO5-25-7BBG256I
Product Categories:
Lattice Semiconductor
Description:
FPGA MACHXO5-NX W/FLASH 256BGA
Do you want to buy more and get a better price for this part? Please fill in the short form below:
quantity
email
contact
company
Telephone
country
content

LFMXO5-25-7BBG256I Overview

Widely applicable in many different applications, LFMXO5-25-7BBG256I is optimized for bridging, I/O expansion, board control, and management. It is constructed utilizing low-power 28 nm FD-SOI technology on the Lattice Nexus FPGA platform. It offers tiny footprint packaging possibilities and combines the great flexibility of an FPGA with the low power and high reliability (thanks to the extremely low Soft Error Rate) of FD-SOI technology.

LFMXO5-25-7BBG256I is compatible with a number of interfaces, including SGMII (Gigabit Ethernet), LVDS, SLVS, subLVDS, MIPI D-PHY (CSI-2, DSI), and more. It has embedded flash memory for UFM and on-chip multi-boot.

LFMXO5-25-7BBG256I provides both ultra-quick configuration of its programmable sysI/OTM from on-chip Flash and fast configuration of its reconfigurable SRAM-based logic fabric. The MachXO5-NX security features include bitstream encryption, authentication, and password protection to protect user designs. Due to its extremely low SER, FD-SOI technology already has a high level of inherent reliability, but it also supports active reliability features like built-in frame-based SED/SEC (for SRAM-based logic fabric) and ECC (for EBR and LRAM). Each device has an integrated ADC that can be used for system monitoring purposes.



LFMXO5-25-7BBG256I Features

  • 27k logic cells

  • 20 18 × 18 multipliers (in sysDSP™ blocks)

  • 1.9 Mb of embedded memory blocks (EBR, LRAM)

  • 200 to 300 programmable sysI/O (High Performance and Wide Range I/O)

  • Supports up to 3.3 V VCCIO

  • Mixed voltage support (1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V)

  • Programmable slew rate (slow, medium, fast)

  • Controlled impedance mode

  • Emulated LVDS support

  • Hot socketing support



LFMXO5-25-7BBG256I Applications

  • More Memory and Higher Density for Complex Control Applications 7.3Mb of internal memory, 100K logic density, and 55Mb of user flash memory (UFM) are all possible.

  • I/O capabilities that are quick and reliable include high-speed LVDS, MIPI, and PCIe interfaces, as well as 1.0V I/O that supports current CPUs.

  • Internal flash configuration, AES 256 bitstream encryption, ECC 256 bitstream authentication, configuration port lock, and run-time security are all examples of device security that protects intellectual property.


LFMXO5-25-7BBG256I Specifications

SpecificationValue
CategoryIntegrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array)
MfrLattice Semiconductor Corporation
SeriesMachXO5-NX
PackageTray
Product StatusActive
DigiKey ProgrammableNot Verified
Number of LABs/CLBs3125
Number of Logic Elements/Cells25000
Total RAM Bits2187264
Number of I/O160
Voltage - Supply0.95V ~ 1.05V
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 100°C (TJ)
Package / Case256-LFBGA
Supplier Device Package256-CABGA (14x14)
