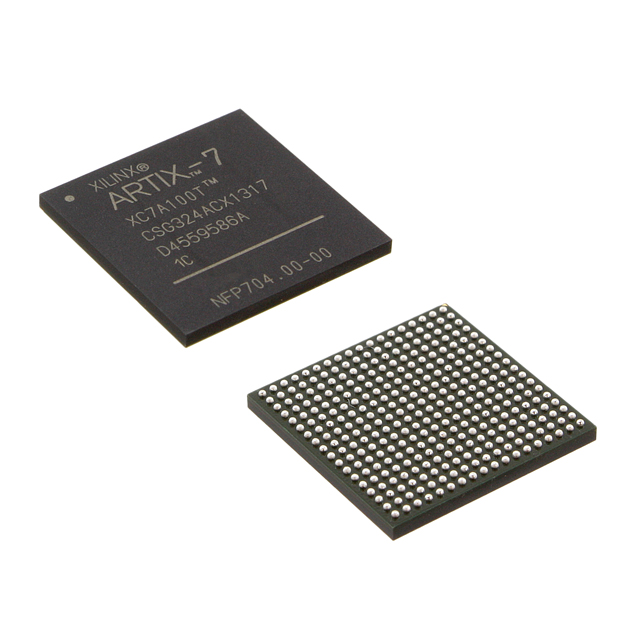

The XC7A100T-1CSG324C is an AMD Artix-7 series FPGA (Field Programmable Gate Array). It is intended for embedded applications requiring programmable logic. This FPGA is packaged on a tray and includes 126 parts in a typical packaging. With 210 I/O pins available, there are numerous connecting choices. The XC7A100T-1CSG324C can handle sophisticated logic operations because to its 7925 LABs/CLBs and 101440 logic elements/cells. With a total RAM capacity of 4976640 bits, it offers enough memory for data processing and archiving. This FPGA is ideal for surface mount mounting and operates in the 0.95V to 1.05V voltage range. It has a 324-LFBGA package and a 324-CSPBGA (15x15) supplier device package. This gadget can be used at temperatures between 0°C to 85°C (TJ). The active XC7A100T-1CSG324C device has a high level of performance and reliability, making it perfect for a variety of embedded applications. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Modern 28nm, high-k metal gate (HKMG), high performance, low power (HPL) technology
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Phase-locked loop and mixed mode clock managers are combined in effective clock management tiles (CMT).
Options for lidless flip-chip packages, low cost wire bonding, and AXI IP (analogue mixed signal integration)
The embedded OEM
Automated manufacturing
Sensor fusion
Embedded vision
Consumer electronics
Medical devices
Defense applications
Software defined radio
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 7925 |
Number of Logic Elements/Cells | 101440 |
Total RAM Bits | 4976640 |
Number of I/O | 210 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 324-LFBGA, CSPBGA |
Supplier Device Package | 324-CSPBGA (15x15) |
Base Product Number | XC7A100 |
