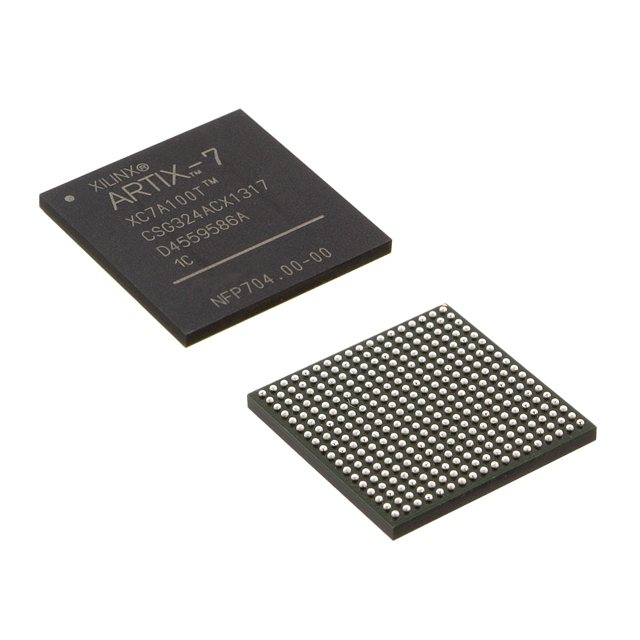

For more coherent data transport, XC7A100T-1CSG324CES9937 is configured with 210 I/Os. There are 101440 logic elements or cells that make up a basic building block. Use this FPGA module with your development board by connecting the Surface Mount connector. Fpga chips are powered by batteries and operate at a voltage between 0.95V and 1.05V. This particular FPGA belongs to the Artix-7 family of FPGAs. When running, the temperature should be regulated between 0°C and 85°C TJ. This FPGA model has been packed in Tray to conserve space. The total number of RAM bits available to you with this device is 4976640. Use the base component number XC7A100T to locate related parts. To make sure that the software executes properly, the RAM si607.5kBe reaches 607.5kB during the setting of this FPGA module. This FPGA has 7925 LABs and CLBs built in. This FPGA must be installed in Surface Mount for it to function as intended and in accordance with its specifications. This module can withstand temperatures up to 85°C during normal operation. Operating temperatures must to be higher than 0°C. Its fundamental building component consists of 7925 logic blocks (LABs). 324-CSPBGA (15x15) is the supplier of this device package. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
MicroBlaze soft IP processor
Integrated surveillance and security
Integrating discrete analog and monitoring circuitry with XADC and SYSMON
Expanding system I/O at a lower cost
Optional core voltages of 0.95 V or 1.0 V
Reduced overall power by 50% compared to 45 nm generation devices
Performance that is 30% faster than 45 nm generation devices
Broadcast camera
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Video and night vision equipment
LTE radio and baseband
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Obsolete |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 7925 |
Number of Logic Elements/Cells | 101440 |
Total RAM Bits | 4976640 |
Number of I/O | 210 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 324-LFBGA, CSPBGA |
Supplier Device Package | 324-CSPBGA (15x15) |
Base Product Number | XC7A100T |
