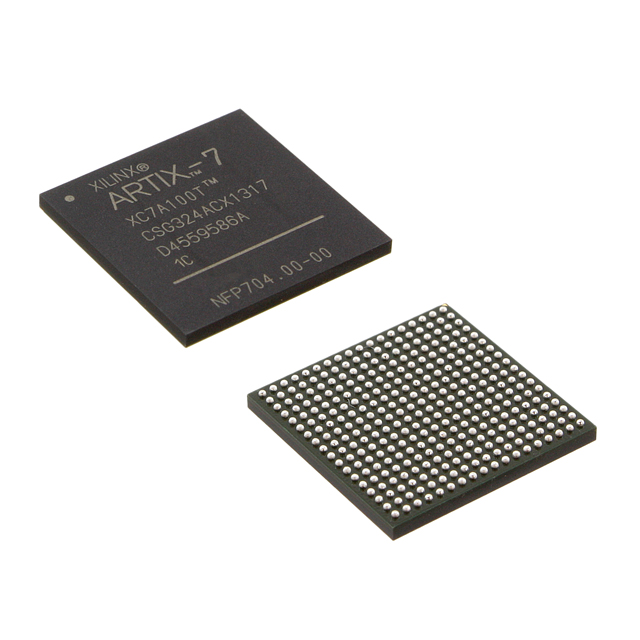

The Xilinx Inc. XC7A100T-2CSG324C is an embedded FPGA (Field Programmable Gate Array) with 210 I/O. 101440 cells or logic elements make up a logic block. It is run off of a 1V electrical supply. A member of the Field Programmable Gate Arrays family is this FPGA component. This FPGA module can be used with your development board by connecting the Surface Mount connector. A supply voltage of 0.95V–1.05V is used by Fpga chips to operate.An FPGA is an FPGA that belongs to the Artix-7 family. When the unit is in use, operating temperatures should always be kept within the 0°C to 85°C TJ range. There are 210 outputs incorporated into a gadget like this. Due to space restrictions, Tray now includes this FPGA type. It contains a total of 324 terminations in all. This fpga chip provides 4976640 RAM bits in total. Use its base part number, XC7A100T, for related components. The RAM si607.5kBe of this FPGA module must reach 607.5kB GB in order to ensure that the application runs as intended. This FPGA contains 7925 LABs/CLBs altogether. The device works on a 1V battery and doesn't need a separate power source to function. It is a flexible tool with a total of 324 pins. Typically, a 1286MHz crystal is used. It's crucial to remember that 126800 distinct registers are used to store and transport data in fpga semiconductor. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Three Pmod standard ports
The Artix®-7 has higher system performance, programmable system integration, and reduced BOM costs.
Reduction in total power (65% less static power and 50% less power than 45nm generation devices)
ADAS
Medical Endoscope
Small Cell Baseband
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 7925 |
Number of Logic Elements/Cells | 101440 |
Total RAM Bits | 4976640 |
Number of I/O | 210 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 324-LFBGA, CSPBGA |
Supplier Device Package | 324-CSPBGA (15x15) |
Base Product Number | XC7A100 |
