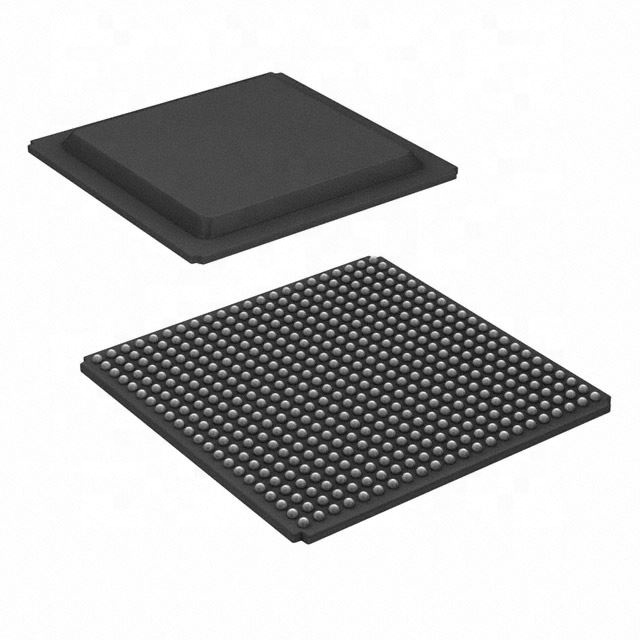

XC7A100T-2FG484C

XC7A100T-2FG484C Overview

The XC7A100T-2FG484C is an Artix®-7 FPGA that comes in performance grades of -3, -2, -1, -1LI, and -2L, with -3 being the fastest. The active integrated circuit Xilinx Inc. XC7A100T-2FG484C has 285 I/Os, 7925 LABs/CLBs, 101440 logic elements/cells, and 4976640 RAM bits. This SMD (SMT) mounted IC has an operational temperature range of 0°C to 85°C (TJ), and it requires a supply voltage of 0.95 V to 1.05 V. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.

XC7A100T-2FG484C Features

• High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.

• A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.

• DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.

• Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.

• Utilize the MicroBlazeTM processor to quickly install embedded processing.

• PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.

• Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.

XC7A100T-2FG484C Applications

• Any-to-any connectivity

• Sensor fusion

• Embedded vision

• Software defined radio

• Programmable logic controller

• Machine vision camera

• Portable ultrasound
