XC7A100T-2FTG256C

XC7A100T-2FTG256C Overview

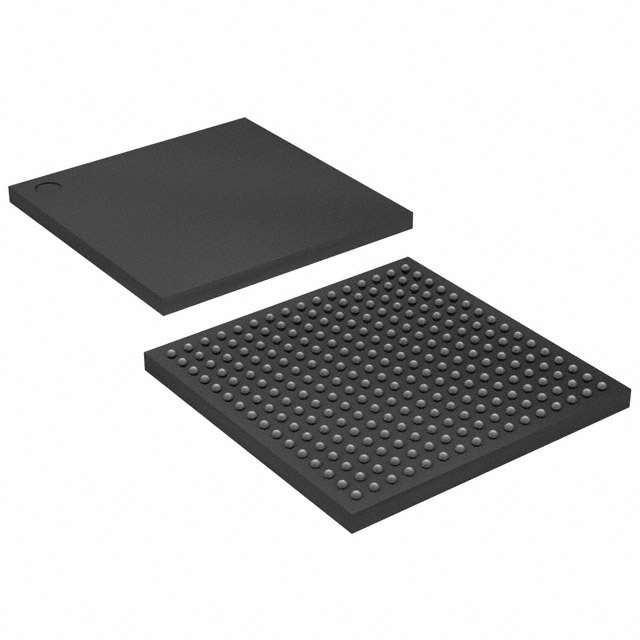

The XC7A100T-2FTG256C is an integrated circuit that is used for embedded - FPGAs (Field Programmable Gate Array). It comes in a tray container and is part of the Artix-7 series. This electrical part has 101440 logic cells and 170 I/O, as well as 7925 LABs and CLBs. Its voltage supply ranges from 0.95V to 1.05V, and its overall RAM capacity is 4976640 bits. The supplier device package is 256-FTBGA (17x17), but the package/case is 256-LBGA. Its operational temperature range is 0°C to 85°C (TJ), and its ECCN is EAR99. The open market fake threat for this product is 74%, and its MSL level is 3 (168 hours). Its REACH status is unaltered, and its HTSUS number is 8542.39.0001. This electronic component's basic product number is XC7A100, and AMD Xilinx is the manufacturer. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7A100T-2FTG256C Features

• High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.

• A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.

• DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.

• Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.

• Utilize the MicroBlazeTM processor to quickly install embedded processing.

• PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.

• Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.

XC7A100T-2FTG256C Applications

• Built on 28nm technology

• MicroBlaze soft processor running over 200 DMIPs

• Integrated ADC

• Dedicated security features

• Q-grade (-40°C to +125°C)

• 30% faster performance than 45nm generation devices

• Up to 1.25Gb/s LVDS

• 25.6Gb/s peak DDR3-800 memory bandwidth
