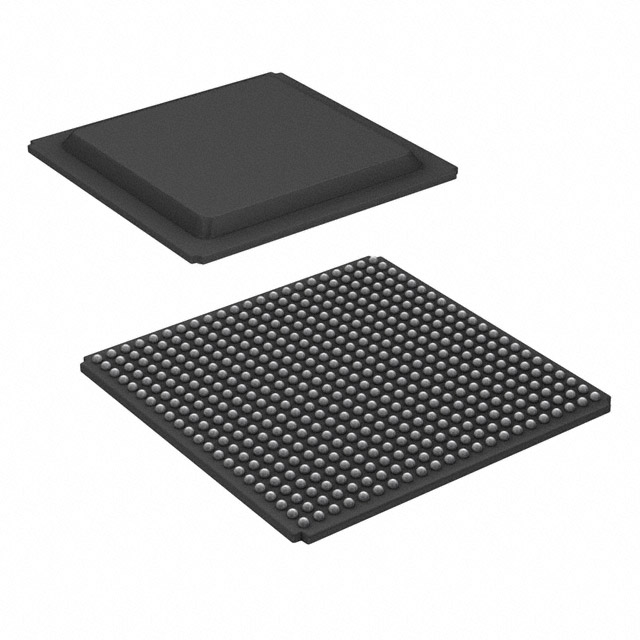

The XC7A100T-3FGG484E is an integrated circuit (IC) that belongs to the series of Artix-7. It is a tray-packaged embedded field programmable gate array (FPGA). This component comes in a standard 60-package with an SMD (SMT) mounting. It has 101440 logic cells, 7925 LABs/CLBs, and 285 I/O. This component has a voltage supply range of 0.95V to 1.05V and has a total RAM bit count of 4976640. This component's package/case is 484-BBGA, while the supplier's device package is 484-FBGA (23x23). It is cross-referenced with XC7A75T-1FGG484C, XC7A75T-2FGG484I, and XC7A75T-1FGG484IXC7A100T3FGG484E and has a temperature range of 0°C to 100°C (TJ). The open market's bogus threat, with the ECCN 3A991D, is 67% false. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Real 6-input lookup table (LUT)-based advanced high-performance FPGA logic that may be configured as distributed memory.
Block RAM with a built-in FIFO for on-chip data buffering, 36 Kb, twin ports.
High-speed SelectIOTM technology that is compatible with DDR3 connections of up to 1,866 Mb/s.
High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.
A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.
DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.
Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.
Sensor fusion
Embedded vision
Software defined radio
Programmable logic controller
Machine vision camera
Portable ultrasound
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 7925 |
Number of Logic Elements/Cells | 101440 |
Total RAM Bits | 4976640 |
Number of I/O | 285 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 100°C (TJ) |
Package / Case | 484-BBGA |
Supplier Device Package | 484-FBGA (23x23) |
Base Product Number | XC7A100 |
