XC7A100T-L1FTG256I

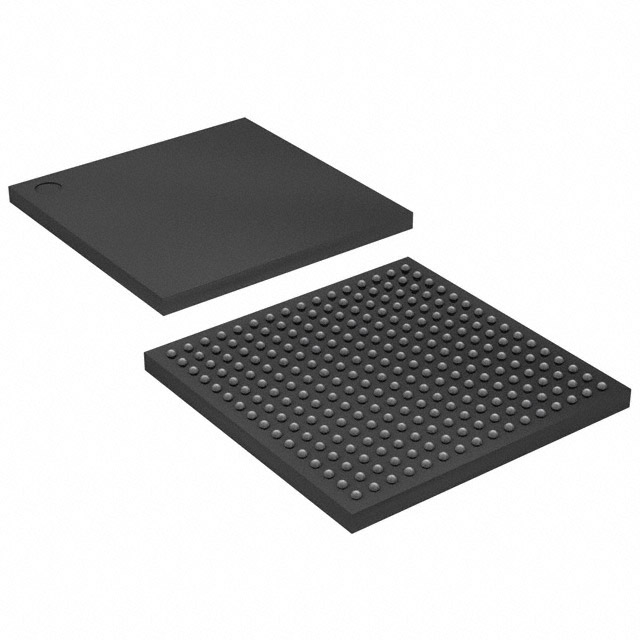

The AMD Xilinx XC7A100T-L1FTG256I is an embedded FPGA integrated circuit having 170 input/output pins, 7925 logic array blocks, 101440 logic elements/cells, and 4976640 total RAM bits. It has a temperature range of -40°C to 100°C and runs on a voltage supply range of 0.95V to 1.05V. The component is enclosed in a 256-FTBGA (17x17) and complies with ROHS3. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.
16-bit bus, 512 MB micron DDR3, 800 or 667 MT/s, adjustable voltage
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
Infotainment
Broadcast camera
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Video and night vision equipment
LTE radio and baseband
Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.
AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.
| Specification | Value |
| Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
| Mfr | AMD |
| Series | Artix-7 |
| Package | Tray |
| Product Status | Active |
| DigiKey Programmable | Not Verified |
| Number of LABs/CLBs | 7925 |
| Number of Logic Elements/Cells | 101440 |
| Total RAM Bits | 4976640 |
| Number of I/O | 170 |
| Voltage - Supply | 0.95V ~ 1.05V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Package / Case | 256-LBGA |
| Supplier Device Package | 256-FTBGA (17x17) |
| Base Product Number | XC7A100 |
