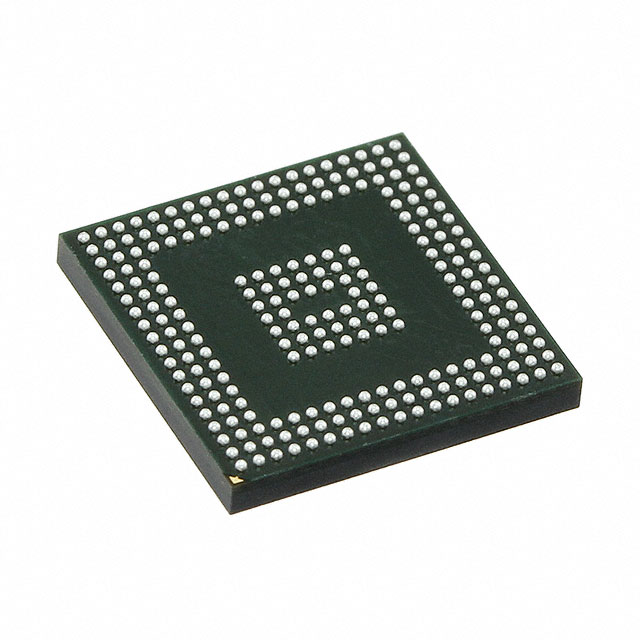

This part is a part of the 238-LFBGA, CSPBGA package. This kind of FPGA contains transistors with FIELD PROGRAMMABLE GATE ARRAY functionality. It can transport data more effectively thanks to its 106 I/Os. 12800 logic cells/elements make up a basic building block. One volt serves as the power source for it. You can attach this FPGA module on the development board using a Surface attach connector. This gadget works well with a supply voltage of 0.95V–1.05V. The Artix-7 line of FPGAs includes this kind of FPGA. When the device is operational, Fpga chips must be used to maintain the operating temperature within the range of 0°C and 85°C. There is an FPGA model contained in Tray in order to conserve space. This work has a total of 236 terminations. It's significant to note that this gadget has a RAM capacity of 737280 bytes. In this FPGA, there are a total of 1000 LABs/CLBs. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Circuitry for USB-JTAG programming
UART-USB bridge
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Reduction in total power (65% less static power and 50% less power than 45nm generation devices)
Medical diagnostics and imaging
IP and Smart camera
Video and night vision equipment
LTE radio and baseband
Multifunction printers
Flat Panel Displays
Industrial motor control, industrial networking, and machine vision
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Obsolete |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1000 |
Number of Logic Elements/Cells | 12800 |
Total RAM Bits | 737280 |
Number of I/O | 106 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 238-LFBGA, CSPBGA |
Supplier Device Package | 238-CSBGA (10x10) |
