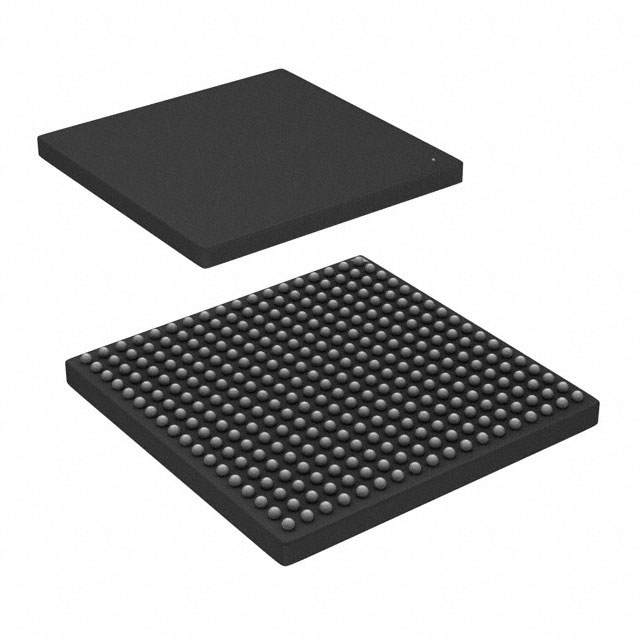

XC7A12T-1CSG325C is offered for sale and is a part of the 324-LFBGA, CSPBGA bundle. These FPGAs are made up of a FIELD PROGRAMMABLE GATE ARRAY. The 150 I/Os are created to make data transfer more organized. 12800 logic cells/elements make up a basic building block. It is driven by 1 volts. A Surface Mount-pin can be used to connect an FPGA module to a development board. FPGA chips can run at high speeds when supplied with a supply voltage of 0.95V to 1.05V. The Artix-7 series of FPGAs includes a particular kind of FPGA known as an Artix-7 series FPGA. The system's operating temperature should stay between 0°C and 85°C TJ during operation. Due to space restrictions, Tray now includes this FPGA type. It contains a total of 325 terminations in all. It has 737280 RAM bits, which is a considerable amount of memory for a gadget like this. This FPGA module has a RAM si720kBe of 720kB to ensure the program runs properly. There are 1000 LABs/CLBs in an array at fpga electronics. This FPGA module has an inbuilt 720kB memory that can be used to store data and programs. In order to store data and prevent resource conflicts, DDR3 memory is used. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
Small Cell Baseband
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Machine Vision
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1000 |
Number of Logic Elements/Cells | 12800 |
Total RAM Bits | 737280 |
Number of I/O | 150 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 324-LFBGA, CSPBGA |
Supplier Device Package | 324-CSPBGA (15x15) |
Base Product Number | XC7A12 |
