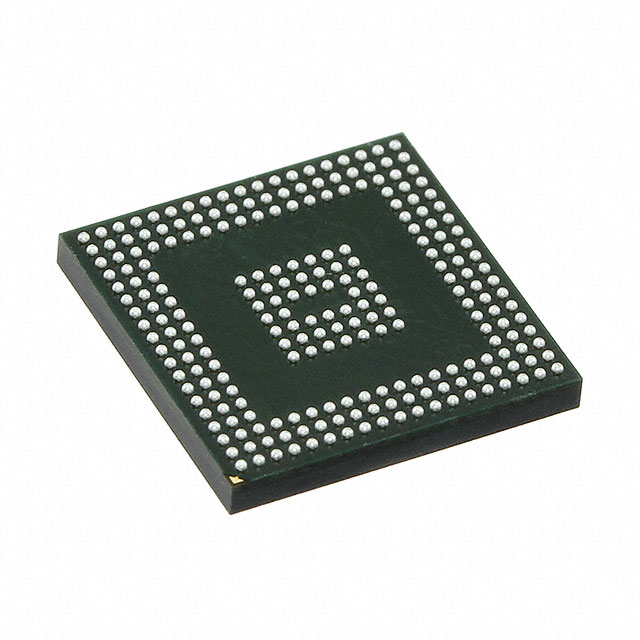

The XC7A12T-2CPG238C is an integrated circuit from AMD's Artix-7 series. It is an FPGA, or field programmable gate array, that works between 0°C and 85°C. It has a total of 737,280 RAM bits and 12,800 logic elements/cells with a voltage supply range of 0.95V to 1.05V. The XC7A12T-2CPG238C has 106 I/O pins and is packaged in a 238-LFBGA, CSPBGA. It has a large market share in embedded systems and is appropriate for surface mount applications. A dependable and effective solution for a variety of electronic designs is this FPGA. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.
A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.
DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.
Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.
Utilize the MicroBlazeTM processor to quickly install embedded processing.
PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.
Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.
Medical Endoscope
Small Cell Baseband
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Machine Vision
Programmable Logic Controller
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1000 |
Number of Logic Elements/Cells | 12800 |
Total RAM Bits | 737280 |
Number of I/O | 106 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 238-LFBGA, CSPBGA |
Supplier Device Package | 238-CSBGA (10x10) |
Base Product Number | XC7A12 |
