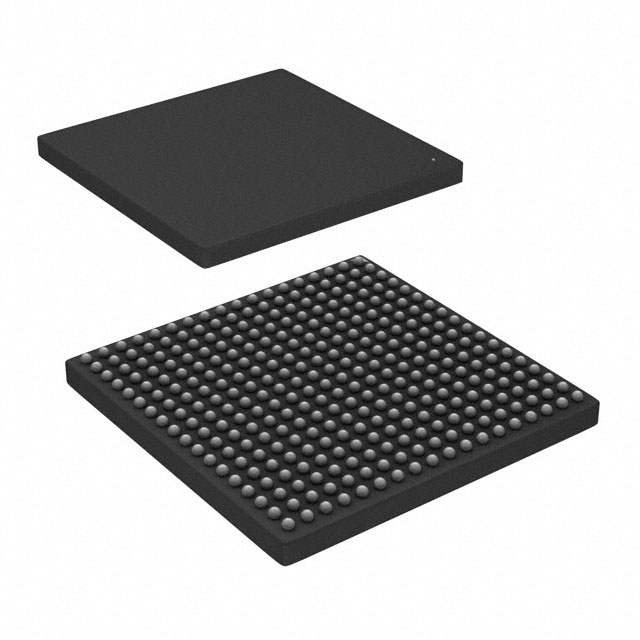

The AMD Xilinx XC7A12T-2CSG325C is an XC7A12 series FPGA integrated circuit (IC). This integrated circuit (IC) has a surface-mountable 324-CSPBGA (15x15) packaging. It features 1,000 logic array blocks/cells and 150 input/output (I/O) pins. Additionally, the XC7A12T-2CSG325C has 737,280 total RAM bits and 12,800 logic elements/cells. It can operate in a temperature range of 0°C to 85°C and between 0.95V and 1.05V of power. Applications that need programmable logic and high-speed processing should use the XC7A12T-2CSG325C. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
MicroBlaze™ processor: The MicroBlaze™ processor is a soft processor that can be used to quickly deploy embedded processing.
36 Kb dual-port block RAM: The 36 Kb dual-port block RAM has integrated FIFO circuitry for on-chip data buffering.
High-performance SelectIO™ technology: The high-performance SelectIO™ technology supports DDR3 interfaces up to 1,866 Mb/s.
Integrated PCI Express® (PCIe) block: The integrated PCI Express® (PCIe) block supports up to x8 Gen3 Endpoint and Root Port designs.
Powerful clock management tiles (CMT): The powerful clock management tiles (CMT) integrate mixed-mode clock manager (MMCM) and phase-locked loop (PLL) blocks for high precision and minimal jitter.
Dual 12-bit 1MSPS analog-to-digital converters: The dual 12-bit 1MSPS analog-to-digital converters with on-chip supply and heat sensors make up the user-configurable analog interface (XADC).
Industrial control
Sensor fusion
Vehicles and transportation
Embedded vision
Consumer electronics
Medical devices
Defense applications
The embedded OEM
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1000 |
Number of Logic Elements/Cells | 12800 |
Total RAM Bits | 737280 |
Number of I/O | 150 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 324-LFBGA, CSPBGA |
Supplier Device Package | 324-CSPBGA (15x15) |
Base Product Number | XC7A12 |
