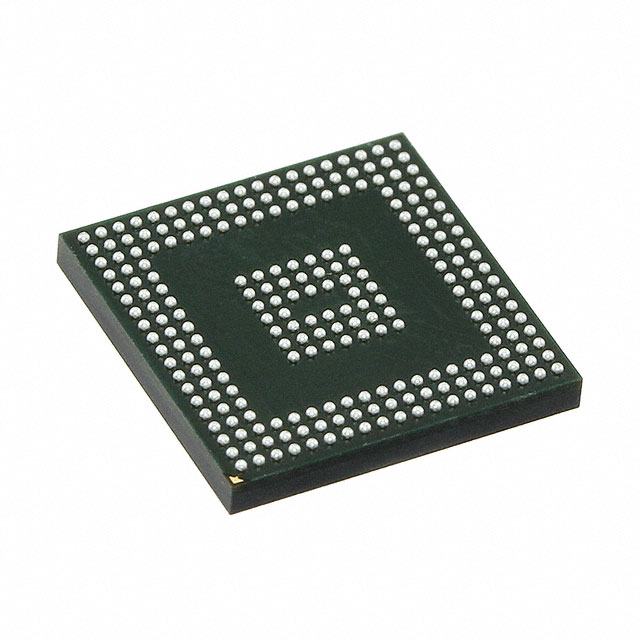

The Xilinx Inc. XC7A15T-1CPG236C is an embedded FPGA with a surface mount mount type and a maximum working temperature of 85°C. Low market popularity and a tight supply and demand situation characterize it. 51% of threats in the free market are false. 20800 registers, 1300 logic blocks (LABs), and 106 I/O are all present in the device. It has a copper, silver, and tin contact plating with a speed grade of 1. The device's minimum operating temperature is 0°C, and it complies with ROHS regulations. The highest and minimum supply voltages are 1.05V and 950mV, respectively. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Automotive driver assistance
Driver information
Infotainment
Broadcast camera
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1300 |
Number of Logic Elements/Cells | 16640 |
Total RAM Bits | 921600 |
Number of I/O | 106 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 238-LFBGA, CSPBGA |
Supplier Device Package | 238-CSBGA (10x10) |
Base Product Number | XC7A15 |
