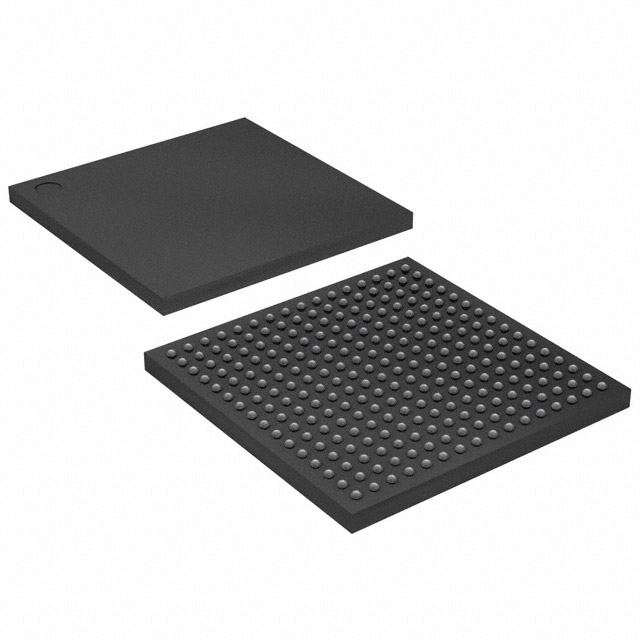

The XC7A15T-1FTG256C is an Artix-7 series field programmable gate array (FPGA) IC manufactured by AMD Xilinx. It has 170 I/Os, 1300 LABs/CLBs, and 16640 logic cells. The voltage supply range for RAM is 0.95V to 1.05V, and there are 921600 total RAM bits. The 256-LBGA case/package used by the XC7A15T-1FTG256C is different from the 256-FTBGA (17x17) device package used by the supplier. The operational temperature range is 0°C to 85°C (TJ). In the open market, this product has a bogus threat percentage of 54%. The MSL level is 3 (168 hours), and the REACH status is unaffected. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
Machine vision camera
Automated manufacturing
Portable ultrasound
Industrial control
Sensor fusion
Vehicles and transportation
Embedded vision
Consumer electronics
Medical devices
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1300 |
Number of Logic Elements/Cells | 16640 |
Total RAM Bits | 921600 |
Number of I/O | 170 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 256-LBGA |
Supplier Device Package | 256-FTBGA (17x17) |
Base Product Number | XC7A15 |
