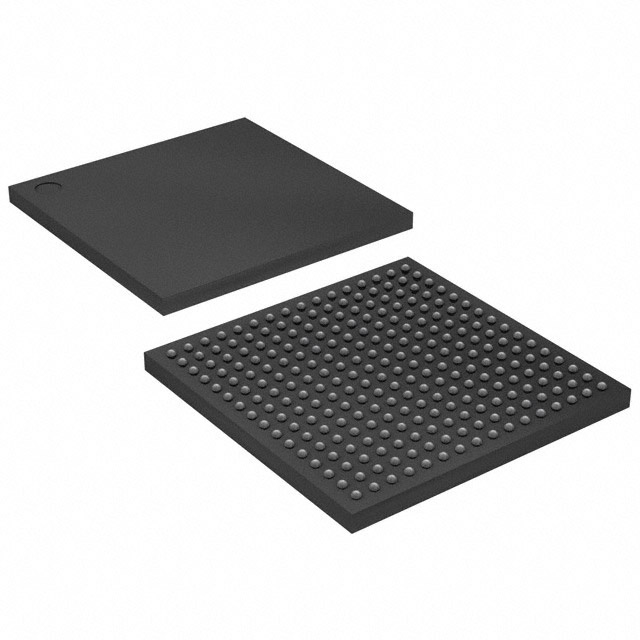

The AMD Xilinx XC7A15T-1FTG256I is an integrated circuit electronic component that belongs to the Embedded - FPGAs (Field Programmable Gate Array) category. The product comes in a tray package and is from the Artix-7 series. It is SMD (SMT) mountable and comes in a 90 standard container. The product has 170 input/output (I/O) and 1300 LABs/CLBs with 16640 logic cells. The device has a power supply of 0.95V to 1.05V and 921600 RAM bits in total. The product comes in a 256-LBGA packaging or case, and the supplier's device comes in a 256-FTBGA (17x17) box. The device has a temperature range of -40 to 100 degrees Celsius (TJ) and a bogus threat rate of 52% in the open market. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Industrial control
Sensor fusion
Vehicles and transportation
Embedded vision
Consumer electronics
Medical devices
Defense applications
The embedded OEM
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1300 |
Number of Logic Elements/Cells | 16640 |
Total RAM Bits | 921600 |
Number of I/O | 170 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 256-LBGA |
Supplier Device Package | 256-FTBGA (17x17) |
Base Product Number | XC7A15 |
