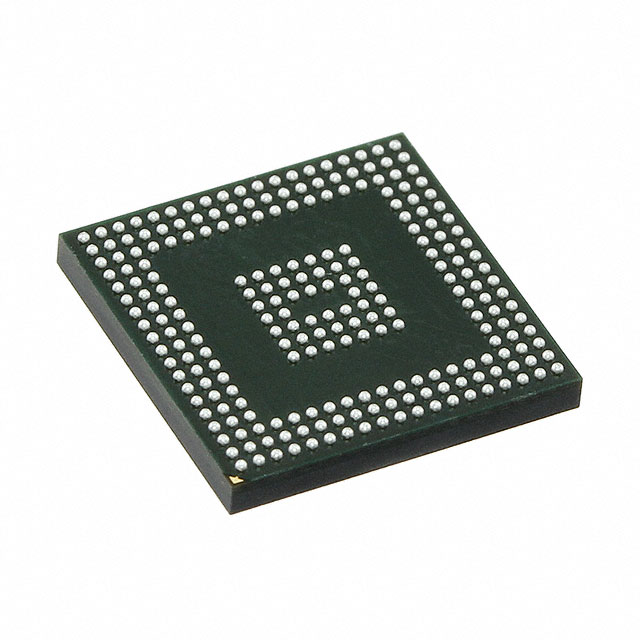

The XC7A15T-2CPG236C is an Artix-7 series integrated circuit manufactured by AMD Xilinx. A single device package comprising 238-CSBGA (10x10), 238-LFBGA (10x10), and CSPBGA (238-LFBGA) make up an integrated FPGA (Field Programmable Gate Array). The system includes 106 I/O, 1300 LABs/CLBs, 16640 logic cells, and 921560 total RAM bits. The operational temperature range (TJ) is 0°C to 85°C, with a voltage supply range of 0.95V to 1.05V. Tray is the type of packaging, while 240 is the typical product size. The item's HTSUS is 8542.39.0001 and it is not affected by REACH. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Xilinx Artix-7 FPGA with industrial temperature rating (XC7A100T-1CSG324I)
16-bit bus, 512 MB micron DDR3, 800 or 667 MT/s, adjustable voltage
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Driver information
Infotainment
Broadcast camera
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Video and night vision equipment
Specification | Value |
---|---|
Number of LABs/CLBs | 1300 |
Number of Logic Elements/Cells | 16640 |
Total RAM Bits | 921600 |
Number of I/O | 106 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0℃ ~ 85℃ (TJ) |
Package / Case | 238-LFBGA, CSPBGA |
Supplier Device Package | 236-CSBGA (10x10) |
