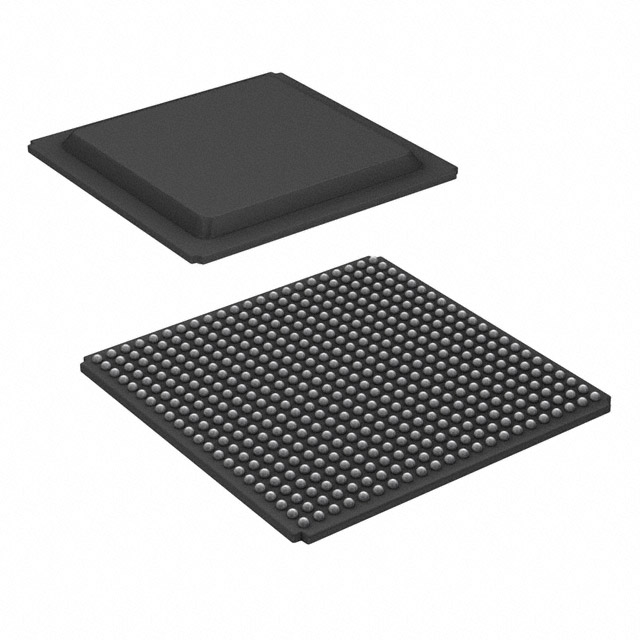

The XC7A15T-2FGG484C is an integrated circuit that falls under the category of embedded - FPGAs (Field Programmable Gate Array). It is packaged on a tray and is a member of the Artix-7 series. 60 components make up the typical box. 250 I/O are available, and it is mounted using SMD (SMT) technology. The total number of logic cells/elements is 16640 whereas the total number of LABs/CLBs is 1300. 921600 bits make up the entire RAM. This component requires a voltage source between 0.95V and 1.05V. The supplier's gadget comes in a 484-FBGA (23x23) package. The operational temperature range for this component is 0°C to 85°C (TJ). The ECCN is 3A991D and the MSL level is 3 (168 hours). 8542.39.0001 is the HTSUS. This part, which is made by AMD Xilinx, is also known as 122-2204 and XC7A15T-2FGG484C-ND. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
Infotainment
Broadcast camera
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Video and night vision equipment
LTE radio and baseband
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1300 |
Number of Logic Elements/Cells | 16640 |
Total RAM Bits | 921600 |
Number of I/O | 250 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 484-BBGA |
Supplier Device Package | 484-FBGA (23x23) |
Base Product Number | XC7A15 |
