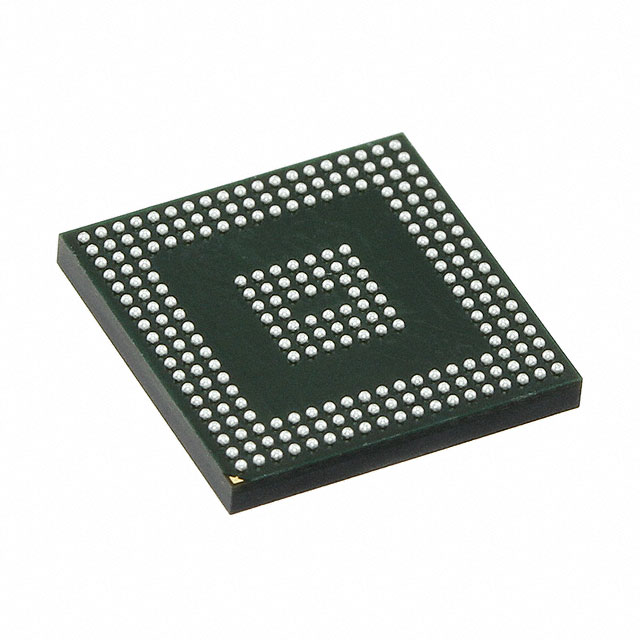

The XC7A15T-3CPG236E is an electronic component belonging to the Artix-7 series of integrated circuits (ICs). For high-performance, low-power applications, it is an embedded field-programmable gate array (FPGA). In the free market, there is a 55% false threat. The XC7A15T-3CPG236E is a high-density FPGA that offers a flexible and effective solution for a variety of applications. It has 106 I/O, 1300 LABs/CLBs, and 16640 logic components. It has a voltage supply range of 0.95V to 1.05V with a total RAM size of 921600 bits. The XC7A15T-3CPG236E is offered in a 238-LFBGA, CSPBGA package and is intended to function in a temperature range of 0°C to 100°C (TJ). The XC7A15T-3CPG236E is a great option for applications that need high-speed data processing and low power consumption because of its cutting-edge features and strong performance. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
16-bit bus, 512 MB micron DDR3, 800 or 667 MT/s, adjustable voltage
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
Vehicles and transportation
Embedded vision
Consumer electronics
Medical devices
Defense applications
The embedded OEM
Software defined radio
Any-to-any connectivity
Programmable logic controller
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1300 |
Number of Logic Elements/Cells | 16640 |
Total RAM Bits | 921600 |
Number of I/O | 106 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 100°C (TJ) |
Package / Case | 238-LFBGA, CSPBGA |
Supplier Device Package | 238-CSBGA (10x10) |
Base Product Number | XC7A15 |
