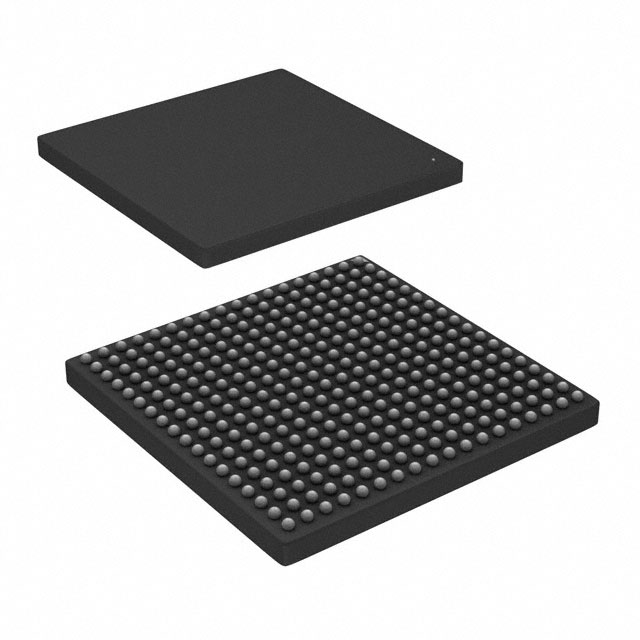

XC7A15T-3CSG325E is contained in a package with the name 324-LFBGA, CSPBGA. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY gates. It has 150 I/Os that are programmed into it so that data may be sent more efficiently. A basic building block has 16640 logic cells or components. One volt serves as the power source for it. The FPGA module's Surface Mount-slot connector can be used to link it to the development board. A battery between 0.95 and 1.05 volts powers this gadget. One of the types of FPGAs that fall within this category is the Artix-7 Series. When using the machine, it's crucial to keep the operating temperature within the range of 0°C and 100°C. The FPGA model is housed in a tray as part of the FPGA chip's design to maximize tray space economy. There are 325 terminations in total. It's crucial to remember that this device has a RAM capacitFpga chipsy of 921600 bytes. To make sure that the software executes properly, the RAM si112.5kBe reaches 112.5kB during the setting of this FPGA module. On this FPGA, 1300 LABs and CLBs are configured. If put in Surface Mount, this FPGA might give excellent results if its parameters are followed. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
For I/O connectivity, a high pin-count to logic ratio is used.
MicroBlaze soft IP processor
Integrated surveillance and security
Integrating discrete analog and monitoring circuitry with XADC and SYSMON
Expanding system I/O at a lower cost
Optional core voltages of 0.95 V or 1.0 V
Reduced overall power by 50% compared to 45 nm generation devices
Performance that is 30% faster than 45 nm generation devices
Sensor fusion
Embedded vision
Software defined radio
Programmable logic controller
Machine vision camera
Portable ultrasound
ADAS
Medical Endoscope
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1300 |
Number of Logic Elements/Cells | 16640 |
Total RAM Bits | 921600 |
Number of I/O | 150 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 100°C (TJ) |
Package / Case | 324-LFBGA, CSPBGA |
Supplier Device Package | 324-CSPBGA (15x15) |
Base Product Number | XC7A15 |
