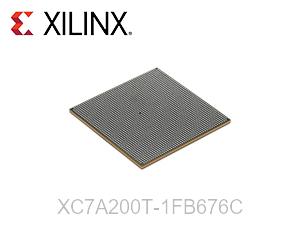

XC7A200T-1FB676C is available for purchase and is a part of the 676-BBGA, FCBGA package. To transfer data more effectively, this device has 400 I/Os. A fundamental construction block consists of 215360 logic components or cells. A Surface Mount-pin is used to connect an FPGA module to a development board. A battery with a voltage range of 0.95 to 1.05 volts powers this device. It is a kind of FPGA and a member of the Artix-7 series. When the device is in use, operating temperatures should always be kept between 0°C and 85°C. In order to save space, Tray includes an FPGA model. The fpga chip's available RAM bits total 13455360. By using the part's basic part number, XC7A200T, one can locate related parts. An array of 16825 latches, or CLBs, make up the FPGA. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Xilinx Artix-7 FPGA with industrial temperature rating (XC7A100T-1CSG324I)
16-bit bus, 512 MB micron DDR3, 800 or 667 MT/s, adjustable voltage
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Automated manufacturing
Portable ultrasound
Industrial control
Sensor fusion
Vehicles and transportation
Embedded vision
Consumer electronics
Medical devices
Specification | Value |
Factory Lead Time | 11 Weeks |
Mounting Type | Surface Mount |
Package / Case | 676-BBGA, FCBGA |
Operating Temperature | 0°C~85°C |
Packaging | Tray |
Series | Artix-7 |
Part Status | Active |
Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
Voltage - Supply | 0.95V~1.05V |
Base Part Number | XC7A200T |
Number of I/O | 400 |
Number of Logic Elements/Cells | 215360 |
Total RAM Bits | 13455360 |
Number of LABs/CLBs | 16825 |
RoHS Status | Non-RoHS Compliant |
