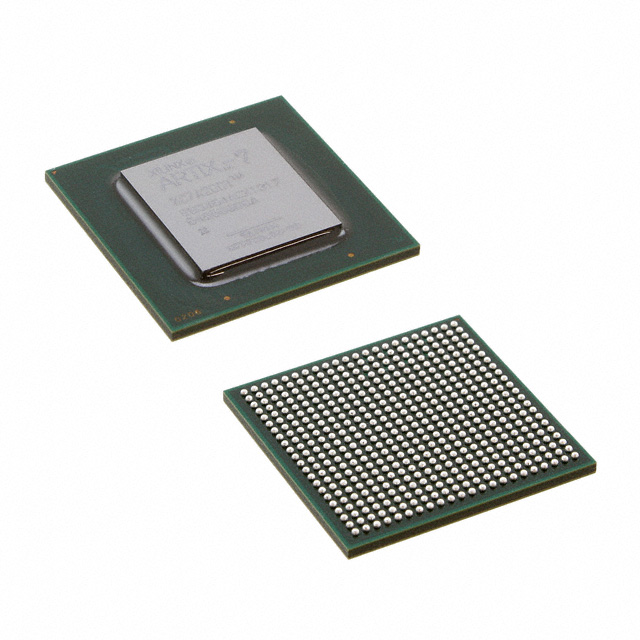

XC7A200T-1FFG1156C is included in the 1156-BBGA, FCBGA package. In order to achieve a more coherent data flow, a total of 500 I/Os are designed. You can attach this FPGA module on the development board using a Surface attach connector. Fpga chips require a supply voltage of 0.95V–1.05V to operate. The Artix-7 series of FPGAs includes a particular kind of FPGA known as an Artix-7 series FPGA. When running, the temperature should be maintained between 0°C and 85°C TJ. 500 outputs were added during this device's installation. Tray is a space-saving container that includes an FPGA model. It has 13455360 RAM bits, which is a considerable amount of memory for a gadget like this. You can search for related parts using its base part number, XC7A200T. The RAM si1.6MBe of this FPGA module must reach 1.6MB in order for the program to function normally. An array of 16825 latches, or CLBs, make up the FPGA. A 1V power source is needed by fpga circuits in order for them to function. Fpga semiconductors typically employ a crystal oscillating at 1098MHz. This FPGA module includes a 1GB memory that can be used to store data and programs. There are 269200 registers that are utilized to store and transfer data. Data is kept in the DDR3 memory, preventing disputes over resources. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Three Pmod standard ports
The Artix®-7 has higher system performance, programmable system integration, and reduced BOM costs.
Reduction in total power (65% less static power and 50% less power than 45nm generation devices)
Design productivity that is increased more quickly, scalable, optimized architecture, extensive tools, and IP
Modern 28nm, high-k metal gate (HKMG), high performance, low power (HPL) technology
Phase-locked loop and mixed mode clock managers are combined in effective clock management tiles (CMT).
Machine vision camera
Portable ultrasound
Industrial control
Sensor fusion
Embedded vision
Consumer electronics
Automated manufacturing
Vehicles and transportation
Medical devices
Defense applications
Software defined radio
Any-to-any connectivity
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 16825 |
Number of Logic Elements/Cells | 215360 |
Total RAM Bits | 13455360 |
Number of I/O | 500 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 1156-BBGA, FCBGA |
Supplier Device Package | 1156-FCBGA (35x35) |
Base Product Number | XC7A200 |
