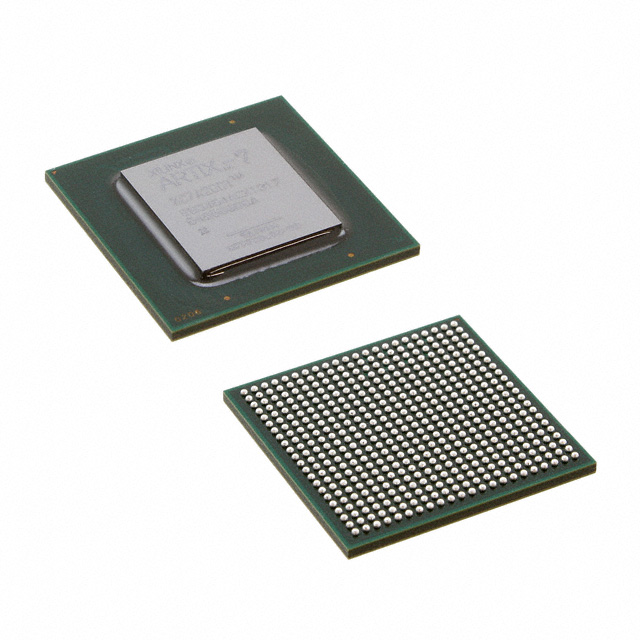

The AMD Xilinx 1318016-XC7A200T-2FB484I is a field programmable gate array (FPGA) designed for use in embedded applications. It has 285 input/output (I/O) ports and is shipped in a tray. This FPGA can handle difficult jobs because to its 215360 logic elements and 16825 logic array blocks (LABs/CLBs). The device runs at a voltage range of 0.95V to 1.05V and contains a total of 13455360 random access memory (RAM) bits. The operating temperature range is between -40°C and 100°C. The gadget is not RoHS compliant and is packaged in a 484-BBGA (23x23). High-performance computer, automotive, and aerospace applications all benefit greatly from the employment of this gadget. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Automotive driver assistance
Driver information
Infotainment
Broadcast camera
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 16825 |
Number of Logic Elements/Cells | 215360 |
Total RAM Bits | 13455360 |
Number of I/O | 285 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 484-BBGA, FCBGA |
Supplier Device Package | 484-FCBGA (23x23) |
Base Product Number | XC7A200 |
