The XC7A200T-2FB676C is a series Artix-7 field programmable gate array (FPGA) IC manufactured by Xilinx Inc. For more effective data transport, 400 I/Os are available. 215360 logic components/cells make up a fundamental building unit. In order to guarantee that the software will function properly, it is crucial that this FPGA module has a RAM si1.6MBe of 1.6MB. This FPGA must be installed in Surface Mount for it to function as intended and in accordance with its specifications. When used with a 1V supply voltage, its versatility can be completely utilized. This module reaches an operating temperature of 85 °C. The operating temperature should be higher than 0°C. The system contains 16825 logic blocks (LABs), which serve as its fundamental building components. A total of 269200 registers are utilized for the storage and inter-register movement of data. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
16-bit bus, 512 MB micron DDR3, 800 or 667 MT/s, adjustable voltage
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Small Cell Baseband
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Machine Vision
Programmable Logic Controller
Specification | Value |
Mount | Surface Mount |

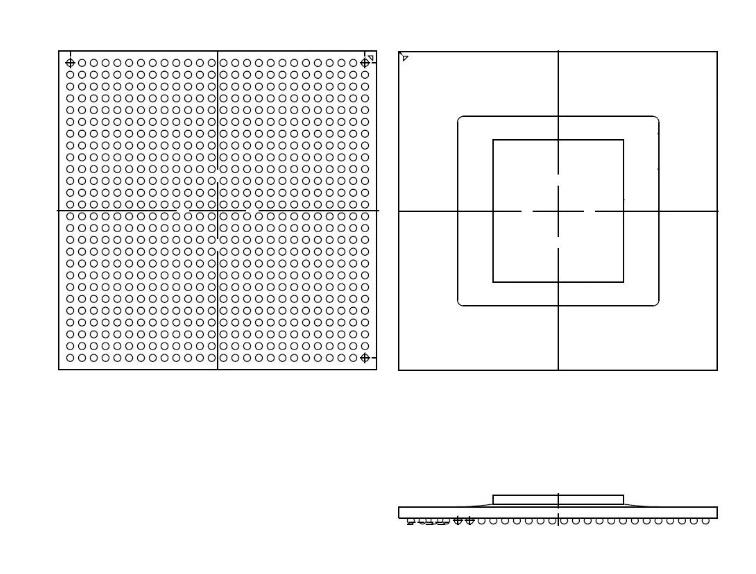

Package / Case | FCBGA |
Max Operating Temperature | 85°C |
Min Operating Temperature | 0°C |
Operating Supply Voltage | 1V |
Number of I/O | 400 |
RAM Size | 1.6MB |
Propagation Delay | 110 ps |
Number of Logic Elements/Cells | 215360 |
Number of Logic Blocks (LABs) | 16825 |
Speed Grade | 2 |
Number of Registers | 269200 |
Radiation Hardening | No |
RoHS Status | Non-RoHS Compliant |
