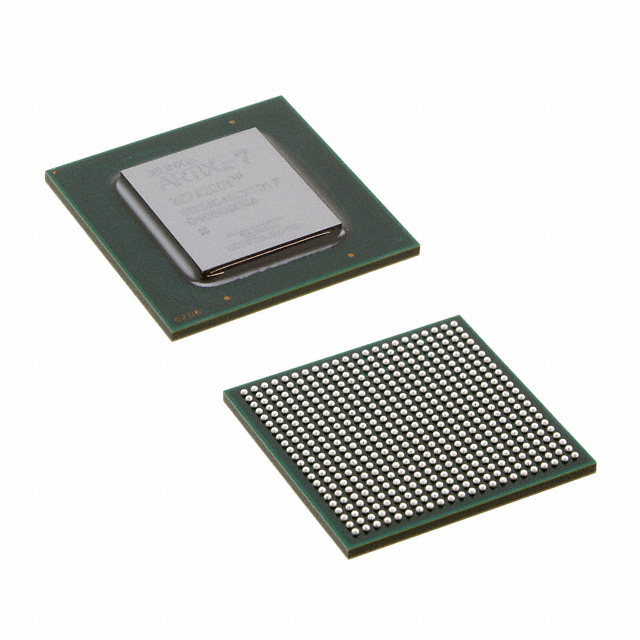

XC7A200T-2FF1156I is included in the package 1156-BBGA, FCBGA. These FPGAs are made up of FIELD PROGRAMMABLE GATE ARRAY elements. Its 500 I/Os make data transport more effective. 215360 logic components/cells make up a fundamental building unit. It is driven by 1 volts. With a Surface Mount, this FPGA module can be connected to the development board. FPGA chips can run at high speeds when supplied with a supply voltage of 0.95V to 1.05V. It is a subclass of FPGA that is a part of the Artix-7 family. When using the machine, it's crucial to keep the working temperature between the range of -40°C to 100°C TJ. This FPGA model is packed in Tray for space-saving purposes. It has 13455360 RAM bits, which is a considerable amount of memory for a gadget like this. Use the basic component number XC7A200T as a place to start when looking for related parts. The RAM si1.6MBe of this FPGA module must increase to 1.6MB GB in order to ensure that the software runs as intended. This FPGA array is made up of 16825 LABs/CLBs altogether. This FPGA should function flawlessly if put in Surface Mount, according to its specs. This FPGA module has a 1GB memory that may be used to store data and programs. There are 269200 registers that are utilized to store and transfer data. Data is stored on a DDR3 memory, which also prevents resource conflicts. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Driver information
Infotainment
Broadcast camera
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Video and night vision equipment
LTE radio and baseband
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 16825 |
Number of Logic Elements/Cells | 215360 |
Total RAM Bits | 13455360 |
Number of I/O | 500 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 1156-BBGA, FCBGA |
Supplier Device Package | 1156-FCBGA (35x35) |
Base Product Number | XC7A200 |
