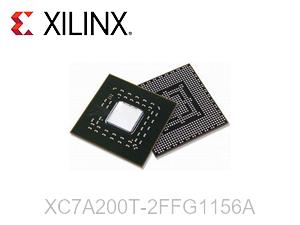

XC7A200T-2FFG1156A FPGAs are capable of meeting the full spectrum of system requirements, from low cost, small form factor, cost-sensitive, high volume applications to ultra high-end connectivity bandwidth, logic capacity, and signal processing capability for the most demanding high-performance applications. The XC7A200T-2FFG1156A FPGA is a fully programmable alternative to ASSPs and ASICs. It is built on a cutting-edge, high-performance, low-power (HPL), 28 nm, high-k metal gate (HKMG) process technology. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Xilinx Artix-7 FPGA with industrial temperature rating (XC7A100T-1CSG324I)
16-bit bus, 512 MB micron DDR3, 800 or 667 MT/s, adjustable voltage
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Defense and military
Medical Endoscope
Small Cell Baseband
Machine vision camera
Automated manufacturing
Portable ultrasound
Industrial control
Sensor fusion
Vehicles and transportation
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
Memory | 13140 |
Number of Logic Elements/Cells | 215360 |
Number of I/O | 500 |
DSP Slices | 740 |
Mounting Type | Surface Mount |
GTP 6.6Gb/s Transceivers | 16 |
Base Product Number | XC7A200 |
