XC7A200T-L1FB484I

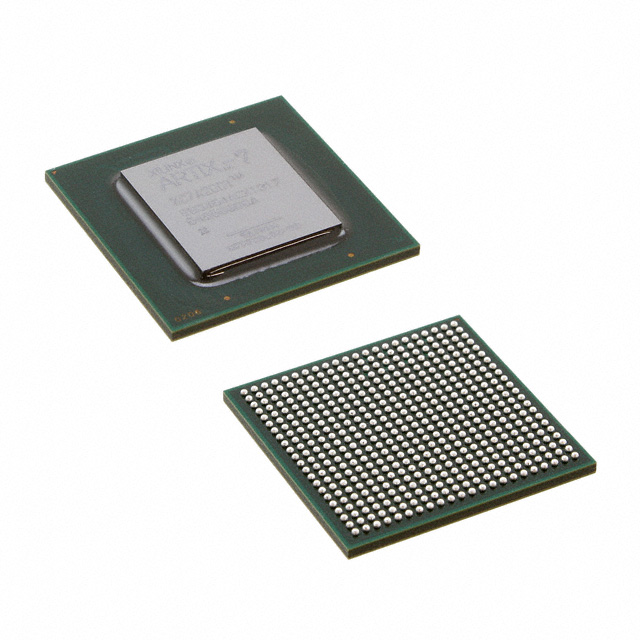

XC7A200T-L1FB484I Overview

XC7A200T-L1FB484I is contained in a package with the name 484-BBGA, FCBGA. In order to transfer data more effectively, this device has 285 I/Os. 215360 logic cells or elements make up a fundamental building block. Using a Surface Mount-connector, FPGA modules can be connected to development boards. A battery is used to power fpga chips, which operate at a voltage between 0.95V and 1.05V. This type of FPGA includes various types, including the Artix-7 Series. As far as operating temperature is concerned, it should be kept between the range of -40°C to 100°C TJ. To conserve space, a model of this FPGA is included in Tube. The fpga chip's available RAM bits total 13455360. An array of 16825 latches, or CLBs, make up the FPGA. The device package it uses as a supplier is 484-FCBGA (23x23). View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.

XC7A200T-L1FB484I Features

• Expanding system I/O at a lower cost

• Optional core voltages of 0.95 V or 1.0 V

• Reduced overall power by 50% compared to 45 nm generation devices

• Performance that is 30% faster than 45 nm generation devices

• 1.25 Gb/s or more LVDS

• Peak DDR3-800 memory bandwidth of 25.6 Gbps with a soft, adaptable memory controller

• Vivado® HLx Design Suite WebPackTM-enabled

• Vivado IP Integrator's correct-by-construction block-level design

XC7A200T-L1FB484I Applications

• Networking equipment

• Industrial control

• Consumer electronics

• Medical devices

• Defense applications

• Industrial

• Automotive

XC7A200T-L1FB484I Specifications
