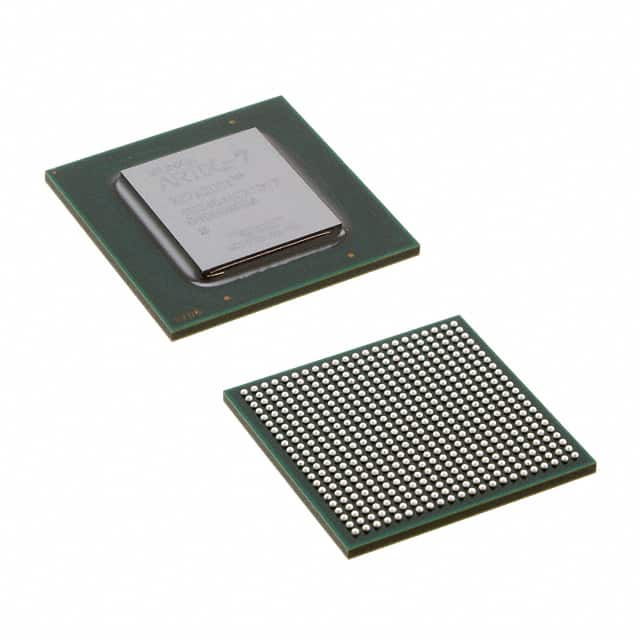

XC7A200T-L1FFG1156I is offered for sale and is a part of the 1156-BBGA, FCBGA package. These FPGAs are made up of FIELD PROGRAMMABLE GATE ARRAY elements. In order to improve data transport, there are 500 I/Os. There are 215360 logic elements or cells that make up a fundamental building block. It is driven by an electrical supply voltage of 0.95V. You can attach this FPGA module on the development board using a Surface attach connector. FPGA chips can run at high speeds when supplied with a supply voltage of 0.95V to 1.05V. The Artix-7 line of FPGAs includes this kind of FPGA. When running, the temperature should be maintained between -40°C and 100°C TJ. For the sake of reducing space, this FPGA model is packed in Tray. The fpga chip's available RAM bits total 13455360. The RAM si1.6MBe of this FPGA module must increase to 1.6MB GB in order to ensure that the software runs as intended. The FPGA has an array of 16825 LABs/CLBs. This FPGA will function flawlessly in accordance with its specifications as long as it is put in Surface Mount. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Reduction in total power (65% less static power and 50% less power than 45nm generation devices)
Design productivity that is increased more quickly, scalable, optimized architecture, extensive tools, and IP
Modern 28nm, high-k metal gate (HKMG), high performance, low power (HPL) technology
Phase-locked loop and mixed mode clock managers are combined in effective clock management tiles (CMT).
Options for lidless flip-chip packages, low cost wire bonding, and AXI IP (analogue mixed signal integration)
I/O voltage range of 1.2V to 3.3V, high-speed serial connectivity, and integrated multi-gigabit transceivers
User-configurable analog interface and genuine 6-input lookup table technology are features of the Artix®-7 FPGA.
Automotive driver assistance
Driver information
Infotainment
Broadcast camera
Medical diagnostics and imaging
Industrial motor control, industrial networking, and machine vision
IP and Smart camera
Specification | Value |
Mounting Type | Surface Mount |
Package / Case | 1156-BBGA, FCBGA |
Operating Temperature | -40°C~100°C TJ |
Packaging | Tray |
Series | Artix-7 |
JESD-609 Code | e1 |
Part Status | Active |
Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
ECCN Code | 3A991.D |
Voltage - Supply | 0.95V~1.05V |
Terminal Position | BOTTOM |
Terminal Form | BALL |
Supply Voltage | 0.95V |
JESD-30 Code | S-PBGA-B1156 |
Number of I/O | 500 |
RAM Size | 1.6MB |
Number of Logic Elements/Cells | 215360 |
Total RAM Bits | 13455360 |
Number of LABs/CLBs | 16825 |
Combinatorial Delay of a CLB-Max | 1.27 ns |
Height Seated (Max) | 3.1mm |
