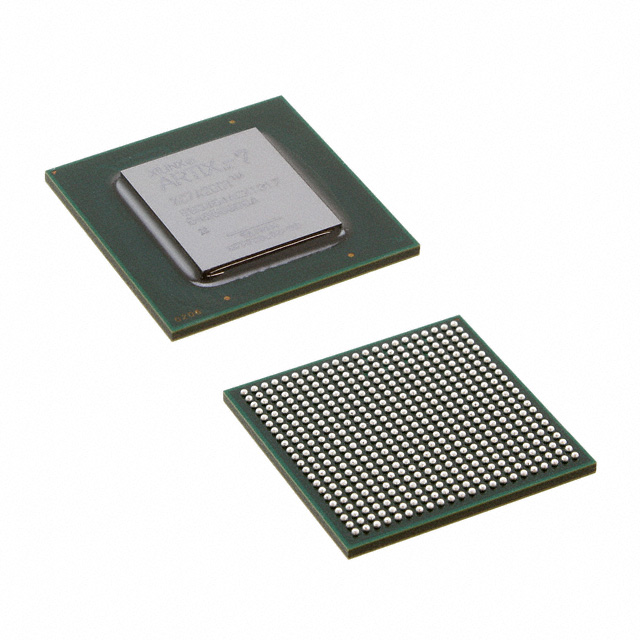

The XC7A200T-L2FFG1156E is an integrated circuit (IC) manufactured by AMD Xilinx. 16825 LABs/CLBs, 215360 logic elements/cells, and 500 I/Os make up this embedded field programmable gate array (FPGA). The operating voltage for this device ranges from 0.95V to 1.05V, and its total RAM size is 13455360 bits. Digital signal processing, networking, and telecommunications are just a few of the applications it is intended for. The product is MSL Level 4 (72 hours), with a 79 percent bogus threat rate in the open market. Both REACH and ROHS3 compliance apply to the product. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Automotive
Any-to-any connectivity
Sensor fusion
Embedded vision
Software defined radio
Programmable logic controller
Machine vision camera
Portable ultrasound
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 16825 |
Number of Logic Elements/Cells | 215360 |
Total RAM Bits | 13455360 |
Number of I/O | 500 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 100°C (TJ) |
Package / Case | 1156-BBGA, FCBGA |
Supplier Device Package | 1156-FCBGA (35x35) |
Base Product Number | XC7A200 |
