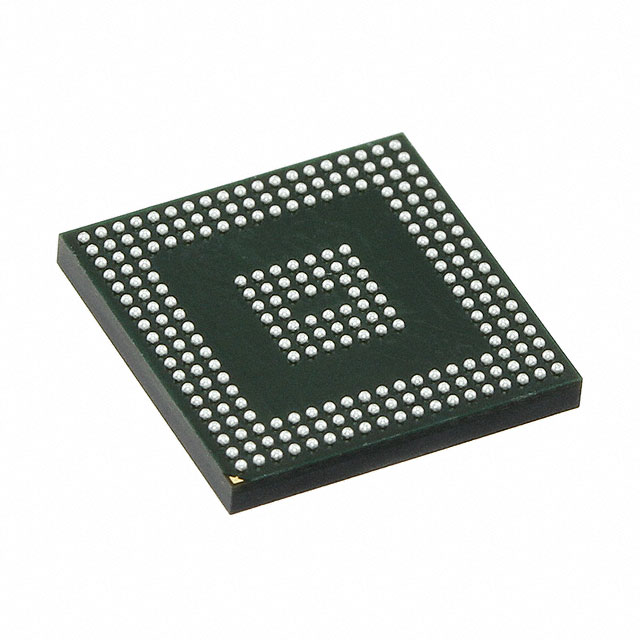

XC7A25T-L1CPG238I is supplied in the 238-LFBGA, CSPBGA package. Fpga chips are designed with 150 I/Os to allow for more organized data transport. 23360 logic components/cells make up a basic building block. A development board's Surface Mount-pin can be used to connect an FPGA module to it. A battery rated at 0.92 to 0.98 volts powers this instrument. This is one of the various FPGA kinds in the Artix-7 series. When functioning, the temperature should be kept between -40 and 100 degrees Celsius (TA). This FPGA model can fit in a very compact area when using the Tray layout. This type of device provides 1658880 RAM bits, which is a sizable amount of memory. 1825 LABs/CLBs make up this FPGA's construction. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Xilinx Artix-7 FPGA with industrial temperature rating (XC7A100T-1CSG324I)
16-bit bus, 512 MB micron DDR3, 800 or 667 MT/s, adjustable voltage
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Machine Vision
Programmable Logic Controller
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1825 |
Number of Logic Elements/Cells | 23360 |
Total RAM Bits | 1658880 |
Number of I/O | 150 |
Voltage - Supply | 0.92V ~ 0.98V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TA) |
Package / Case | 238-LFBGA, CSPBGA |
Supplier Device Package | 238-CSBGA (10x10) |
Base Product Number | XC7A25 |
