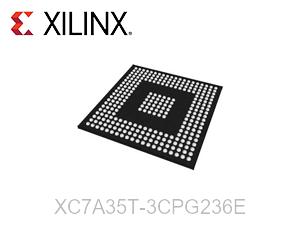

XC7A35T-3CPG236E are contained in the 238-LFBGA, CSPBGA package. This type makes up the FIELD PROGRAMMABLE GATE ARRAY-series of FPGAs. For more effective data transport, 106 I/Os are accessible. A basic building block consists of 33208 logic pieces or cells. A 1V-volt supply is used to generate power. This FPGA component is a programmable gate array and is a member of the Field Programmable Gate Arrays family. You can attach this FPGA module to the development board using a Surface Mount connector. With a supply voltage of 0.95V–1.05V, Fpga chips operate. A type of FPGA that is a part of the Artix-7 series is an FPGA. It is advised to maintain the machine's working temperature within the range of 0°C and 100°C at all times. There are 106 outputs incorporated into a gadget like this. The FPGA model is housed in a tray as part of the FPGA chip's design to maximize tray space economy. Fpga chips have 236 terminations and are designed with Fpga chips. It is noteworthy to point out that this device has 1843200 bfpga electronics of RAM. This FPGA module has a maximum RAM size of 225kB, which is required to guarantee the smooth execution of the software. There are 236 pins in all that are intended for it. This FPGA has 2600 LABs and CLBs built in. Designers may fully benefit from the versatility of 1V supply voltage. The device works on a 1V battery and doesn't need a separate power source to function. There are 236 pins in all on this gadget. The signal is typically produced by a crystal oscillating at 1412MHz. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Modern 28nm, high-k metal gate (HKMG), high performance, low power (HPL) technology
Phase-locked loop and mixed mode clock managers are combined in effective clock management tiles (CMT).
Options for lidless flip-chip packages, low cost wire bonding, and AXI IP (analogue mixed signal integration)
I/O voltage range of 1.2V to 3.3V, high-speed serial connectivity, and integrated multi-gigabit transceivers
User-configurable analog interface and genuine 6-input lookup table technology are features of the Artix®-7 FPGA.
SelectIOTM technology with high performance and support for DDR3 connections up to 1866Mb/s
Small Cell Baseband
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Machine Vision
Programmable Logic Controller
Specification | Value |
Mounting Type | Surface Mount |
Package / Case | 238-LFBGA, CSPBGA |
Surface Mount | YES |
Number of Pins | 236 |
Operating Temperature | 0°C~100°C TJ |
Packaging | Tray |
Published | 2010 |
Series | Artix-7 |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
Number of Terminations | 236 |
ECCN Code | EAR99 |
Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
Subcategory | Field Programmable Gate Arrays |
Technology | CMOS |
Voltage - Supply | 0.95V~1.05V |
Terminal Position | BOTTOM |
Terminal Form | BALL |
Supply Voltage | 1V |
Terminal Pitch | 0.5mm |
Pin Count | 236 |
Number of Outputs | 106 |
Number of I/O | 106 |
RAM Size | 225kB |
Clock Frequency | 1412MHz |
Propagation Delay | 810 ps |
Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY |
Number of Logic Elements/Cells | 33208 |
Total RAM Bits | 1843200 |
Number of LABs/CLBs | 2600 |
