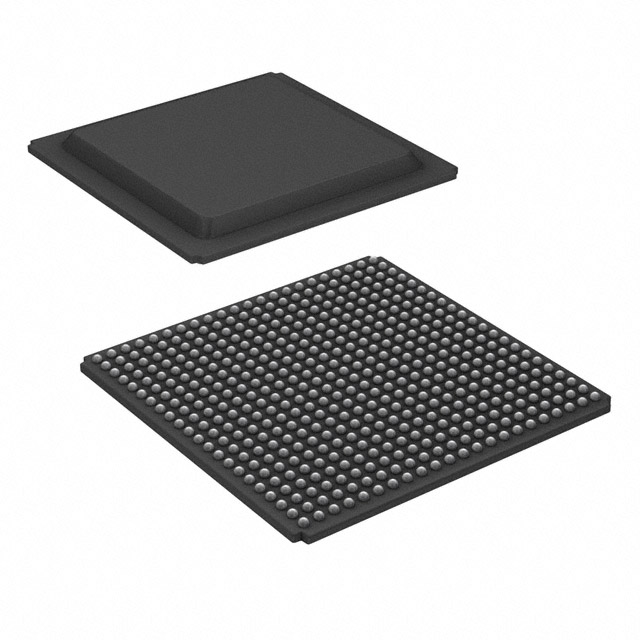

The AMD Xilinx XC7A50T-1FG484I is an integrated circuit (IC) in the category of FPGAs (Field Programmable Gate Array). 250 I/O ports on the device allow for more efficient data transfer. 52160 logic cells/elements make up logic blocks. With a Surface Mount, this FPGA module can be connected to the development board. FPGA chips require a supply voltage between 0.95V and 1.05V in order to function. This is one of many different types of FPGAs in the Artix-7 family. A temperature between -40°C and 100°C TJ must be maintained at all times to guarantee a safe and effective operation. This FPGA model can fit inside a very small area using the Tray layout. This gadget offers 2764800 bits of RAM. This FPGA module has been given a sizable quantity of RAM so that the software can run smoothly. The device is made with 484 pins. This FPGA is constructed as a 4075-LAB/CLB array. This FPGA will function flawlessly in accordance with its specifications as long as it is put in Surface Mount. With a 1V supply voltage, designers may fully leverage its flexibility. This module has a maximum operating temperature of 100°C. It is advised that the working temperature for fpga electronics be higher than -40°C. 4075 logic blocks (LABs) make up the fpga semiconductor. Specifically designed 65200 registers are employed to store and transport the data. The device package for its provider is 484-FBGA (23x23). View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Sensor fusion
Embedded vision
Software defined radio
Programmable logic controller
Machine vision camera
Portable ultrasound
ADAS
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 4075 |
Number of Logic Elements/Cells | 52160 |
Total RAM Bits | 2764800 |
Number of I/O | 250 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 484-BBGA |
Supplier Device Package | 484-FBGA (23x23) |
Base Product Number | XC7A50 |
