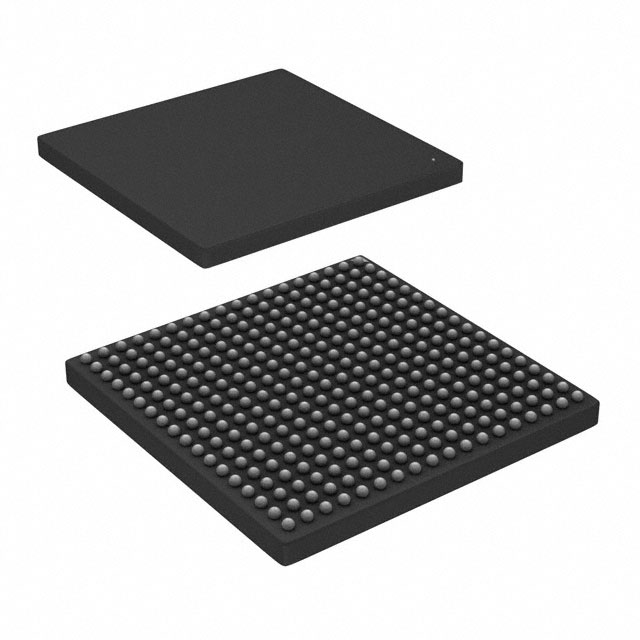

The AMD Xilinx XC7A50T-2CSG325C is an Artix-7 series embedded field programmable gate array (FPGA) integrated circuit (IC). It is built with a 52,160 logic element/cell capacity and a 0.95V to 1.05V supply voltage range. The IC comes in a 126-piece standard package and is packaged in a tray. With an MSL level of 3, it has a fictitious threat percentage of 66% (168 hours). The IC is frequently employed in industries like automotive, industrial, and consumer electronics. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
16-bit bus, 512 MB micron DDR3, 800 or 667 MT/s, adjustable voltage
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Automated manufacturing
Portable ultrasound
Industrial control
Sensor fusion
Vehicles and transportation
Embedded vision
Consumer electronics
Medical devices
Defense applications
The embedded OEM
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 4075 |
Number of Logic Elements/Cells | 52160 |
Total RAM Bits | 2764800 |
Number of I/O | 150 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 324-LFBGA, CSPBGA |
Supplier Device Package | 324-CSPBGA (15x15) |
Base Product Number | XC7A50 |
