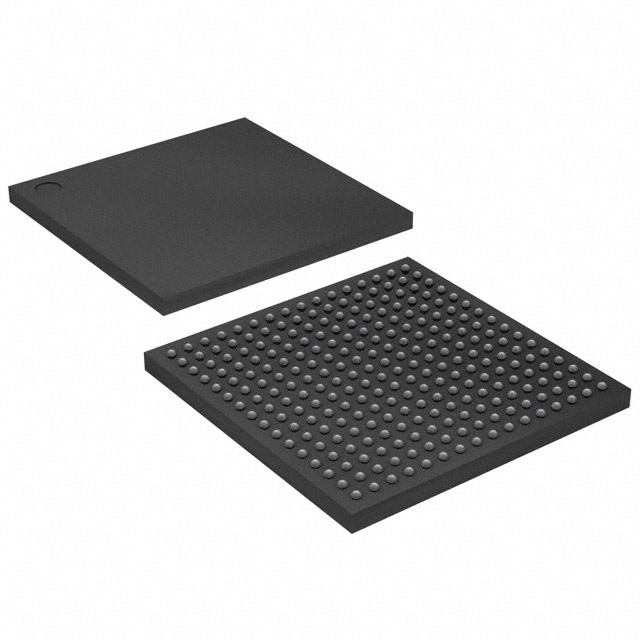

XC7A50T-2FT256I is included in the 256-LBGA package. In order to achieve a more coherent data flow, a total of 170 I/Os are designed. A basic construction block has 52160 logic cells or components. The FPGA module can be attached to the development board via the Surface Mount-slot. The device needs a supply voltage between 0.95 and 1.05 volts to function. An FPGA type that is a member of the Artix-7 family is the Artix-7 series FPGA. When using the machine, it's crucial to keep the working temperature between the range of -40°C to 100°C TJ. This FPGA model can fit inside a very small area using the Tray layout. This type of device provides 2764800 RAM bits, which is a substantial amount of memory. To ensure the program runs normally while in operation, the RAM si337.5kBe of this FPGA module reaches 337.5kB. The gadget is made using 256 pins. This FPGA has 4075 configured LABs and CLBs. If the FPGA is put in Surface Mount in accordance with the IC's specifications, it should perform exactly as intended. Designers may fully benefit from the versatility of 1V supply voltage. This module reaches a temperature of 100°C while operating at its maximum operational temperature. The operating temperature must be higher than -40°C in order to attain -40°C. 4075 logic blocks (LABs) make up the fpga semiconductor. To store and transport data, there are 65200 registers. As a supplier device package, it uses 256-FTBGA (17x17). View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
High-speed SelectIOTM technology that is compatible with DDR3 connections of up to 1,866 Mb/s.
High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.
A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.
DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.
Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.
Utilize the MicroBlazeTM processor to quickly install embedded processing.
PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.
Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.
Design productivity that is increased more quickly, scalable, optimized architecture, extensive tools, and IP
Modern 28nm, high-k metal gate (HKMG), high performance, low power (HPL) technology
Phase-locked loop and mixed mode clock managers are combined in effective clock management tiles (CMT).
Options for lidless flip-chip packages, low cost wire bonding, and AXI IP (analogue mixed signal integration)
I/O voltage range of 1.2V to 3.3V, high-speed serial connectivity, and integrated multi-gigabit transceivers
User-configurable analog interface and genuine 6-input lookup table technology are features of the Artix®-7 FPGA.
SelectIOTM technology with high performance and support for DDR3 connections up to 1866Mb/s
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 4075 |
Number of Logic Elements/Cells | 52160 |
Total RAM Bits | 2764800 |
Number of I/O | 170 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 256-LBGA |
Supplier Device Package | 256-FTBGA (17x17) |
Base Product Number | XC7A50 |
