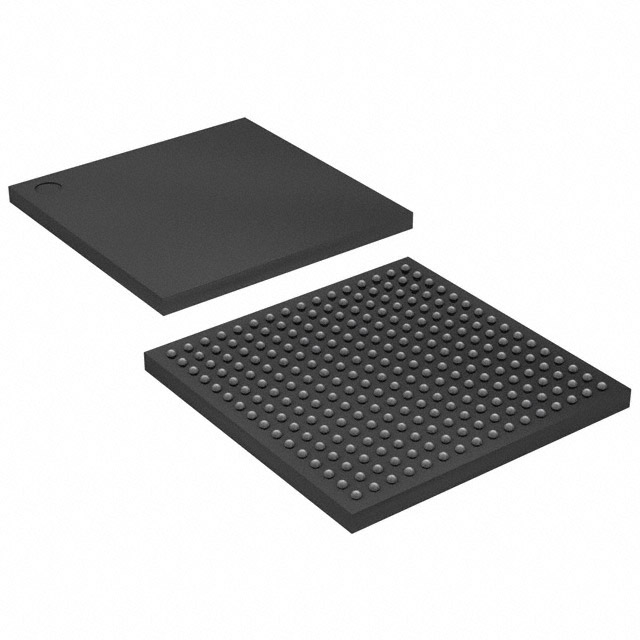

The XC7A75T-1FTG256I is a Field Programmable Gate Array (FPGA) integrated circuit from AMD Xilinx. With 5900 LABs/CLBs, 75520 logic elements/cells, and 3870720 total RAM bits, it is a high-performance FPGA. The gadget can tolerate temperatures between -40°C and 100°C and operates at a voltage range of 0.95V to 1.05V. The component is surface-mounted and comes in a 256-FTBGA package. It is perfect for embedded applications that need great performance and low power consumption because it has 170 I/Os. The XC7A75T-1FTG256I has an ECCN of EAR99 and is RoHS3 compliant. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Modern 28nm, high-k metal gate (HKMG), high performance, low power (HPL) technology
Phase-locked loop and mixed mode clock managers are combined in effective clock management tiles (CMT).
Automatic USB and external power switching; external reception is preferred
Options for lidless flip-chip packages, low cost wire bonding, and AXI IP (analogue mixed signal integration)
I/O voltage range of 1.2V to 3.3V, high-speed serial connectivity, and integrated multi-gigabit transceivers
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Multi-function Printers: Spartan-7 FPGAs are used in multi-function printers to provide high-speed printing, scanning, and copying.
Multi-Axis Motor Control: Spartan-7 FPGAs are used in multi-axis motor control applications to provide precise and efficient control of motors.
Automotive driver assistance: Spartan-7 FPGAs are used in automotive driver assistance applications to provide features such as adaptive cruise control and lane departure warning.
LTE radio and baseband: Spartan-7 FPGAs are used in LTE radio and baseband applications to provide high-speed data transmission and signal processing.
Medical diagnostics and imaging: Spartan-7 FPGAs are used in medical diagnostics and imaging applications to provide high-performance image processing and data analysis.
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 5900 |
Number of Logic Elements/Cells | 75520 |
Total RAM Bits | 3870720 |
Number of I/O | 170 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 256-LBGA |
Supplier Device Package | 256-FTBGA (17x17) |
Base Product Number | XC7A75 |
