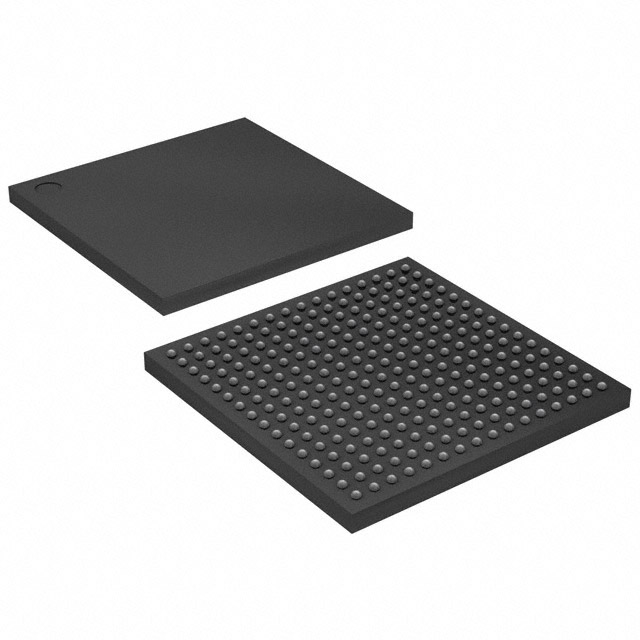

The AMD Xilinx XC7A75T-2FTG256I is an embedded field programmable gate array (FPGA) integrated circuit (IC). This integrated circuit is placed on the surface and has a standard package size of 90. It has 170 I/Os, 5900 LABs/CLBs, and 75520 logic cells. This IC has 3870720 RAM bits in total, and its voltage supply ranges from 0.95V to 1.05V. It has an operating temperature range of -40°C to 100°C (TJ) and comes in a 256-FTBGA (17x17) supplier device package. Additionally, it complies with ROHS3 standards. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
High-speed host to FPGA data transfer via an efficient DPTI/DSPI interface.
Multiple USB cable connections are no longer necessary thanks to the onboard USB hub.
PCB has mounting holes that are typical for the PC/104 form factor.
Powered by a USB header or a 5 V external DC adapter connected to a barrel jack.
Automatic USB and external power switching; external reception is preferred
The NCP380 load switch lowers inrush current and limits USB current to 2 amps.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
Portable ultrasound
Industrial control
Sensor fusion
Vehicles and transportation
Embedded vision
Consumer electronics
Medical devices
Defense applications
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Artix-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 5900 |
Number of Logic Elements/Cells | 75520 |
Total RAM Bits | 3870720 |
Number of I/O | 170 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 256-LBGA |
Supplier Device Package | 256-FTBGA (17x17) |
Base Product Number | XC7A75 |
