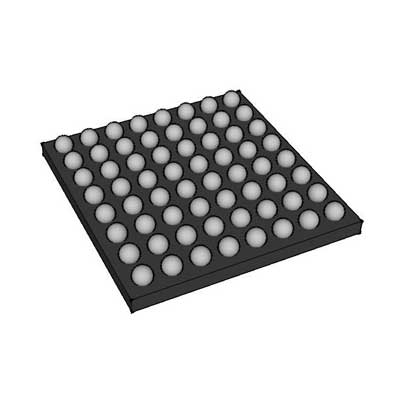

XC7A75T-3FTG256E is a part of the FBGA package. These FPGAs are made up of a FIELD PROGRAMMABLE GATE ARRAY. For more effective data transport, 170 I/Os are provided. A basic building block consists of 75520 logic components or cells. FPGA chips require a power source of 1V volts to function. This part is a member of the Field Programmable Gate Arrays family of FPGA components. There are 170 inbuilt outputs in the gadget. It has a total of 256 terminations in all. To guarantee that the software will function properly, it is crucial that this FPGA module has a RAM si472.5kBe of 472.5kB. There are 256 pins in all that are intended for it. This FPGA should function flawlessly if put in Surface Mount, according to its specs. Designers are able to fully utilize its flexibility when operating with 1V. An electrical source of 1V is used to power fpga electronics. This module operates at a maximum temperature of 100°C. The operating temperature should be higher than zero degrees Celsius. With regard to fpga semiconductor, this device has 256 pins. It is made up of 5900 logic blocks (LABs), also known as building blocks, and forms its fundamental building component. Usually, a crystal oscillating at 1412MHz is used in fpga semiconductor. It's crucial to remember that there are 94400 distinct registers used in fpga semiconductor for the storage and transfer of data. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Quad-SPI 16 MB Spansion Flash
Circuitry for USB-JTAG programming
UART-USB bridge
A single Zmod standard SYZYGY port
Three Pmod standard ports
The Artix®-7 has higher system performance, programmable system integration, and reduced BOM costs.
Reduction in total power (65% less static power and 50% less power than 45nm generation devices)
Design productivity that is increased more quickly, scalable, optimized architecture, extensive tools, and IP
Modern 28nm, high-k metal gate (HKMG), high performance, low power (HPL) technology
Phase-locked loop and mixed mode clock managers are combined in effective clock management tiles (CMT).
Small Cell Baseband
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Machine Vision
Programmable Logic Controller
Specification | Value |
Mount | Surface Mount |
Package / Case | FBGA |
ECCN Code | EAR99 |
Max Operating Temperature | 100°C |
Min Operating Temperature | 0°C |
Supply Voltage | 1V |
Pin Count | 256 |
Number of Outputs | 170 |
Operating Supply Voltage | 1V |
Supply Voltage-Max (Vsup) | 1.05V |
Power Supplies | 1V |
Number of I/O | 170 |
RAM Size | 472.5kB |
Clock Frequency | 1412MHz |
Propagation Delay | 810 ps |
Number of Logic Elements/Cells | 75520 |
Number of Logic Blocks (LABs) | 5900 |
Speed Grade | 3 |
Number of Registers | 94400 |
Height Seated (Max) | 1.55mm |
