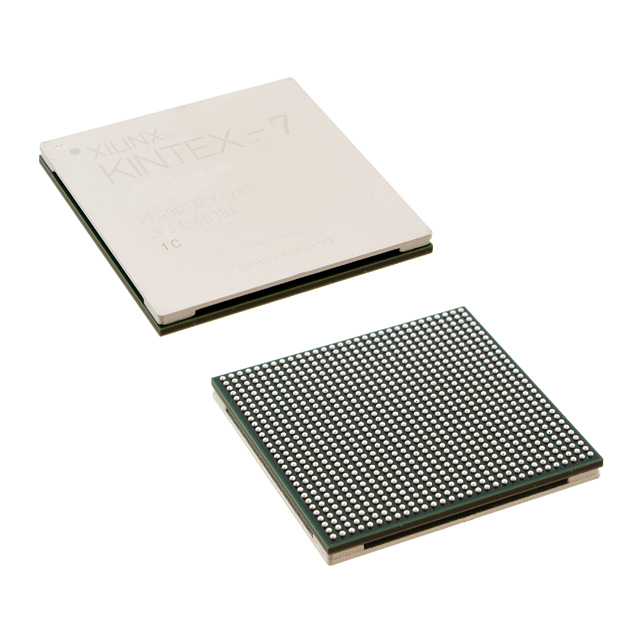

Xilinx XC7K325T-L2FBG900E from AMD is an integrated circuit which fits into the Field Programmable Gate Array (FPGA) category. XC7K325T-L2FBG900E offers a fully programmable alternative to ASSPs and ASICs. It is built on a cutting-edge, high-performance, low-power (HPL), 28 nm, high-k metal gate (HKMG) process technology. XC7K325T-L2FBG900E enables an unprecedented increase in system performance with 500 I/O, 16404480 Total RAM Bits. This device supplys 0.97V ~ 1.03V. The Xilinx FPGAs (Field Programmable Gate Array) series XC7K325T-L2FBG900E is an FPGA Kintex-7 Family 326080 Cells 28nm Technology 1V. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.
A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.
DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.
Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.
Utilize the MicroBlazeTM processor to quickly install embedded processing.
PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.
Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.
Flip-chip packaging that is low-cost, wire-bonded, bare-die, and high signal integrity and allows for simple family migration in the same package. Both Pb-free versions of all packages and Pb versions of some packages are offered.
With 28 nm, HKMG, HPL process, 1.0V core voltage process technology, and 0.9V core voltage option for even lower power, it is designed for maximum performance and lowest power.
Sensor fusion
Embedded vision
Software defined radio
Programmable logic controller
Machine vision camera
Portable ultrasound
ADAS
Medical Endoscope
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Kintex®-7 |
Package | Tray |
Product Status | Active |
Number of LABs/CLBs | 25475 |
Number of Logic Elements/Cells | 326080 |
Total RAM Bits | 16404480 |
Number of I/O | 500 |
Voltage - Supply | 0.97V ~ 1.03V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 100°C (TJ) |
Package / Case | 900-BBGA, FCBGA |
Supplier Device Package | 900-FCBGA (31x31) |
Base Product Number | XC7K325 |
