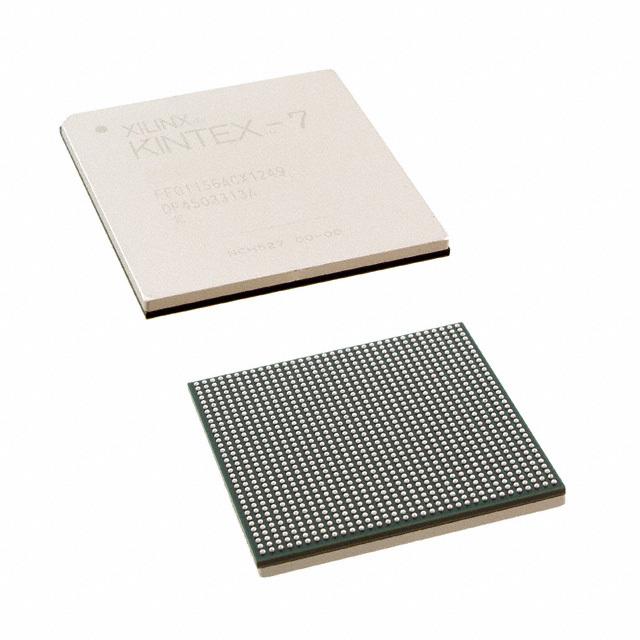

XC7K420T-L2FFG1156E Kintex-7 FPGAs from Xilinx, Inc

XC7K420T-L2FFG1156E Overview

Xilinx XC7K420T-L2FFG1156E is an FPGA integrated circuit manufactured by AMD Xilinx. XC7K420T-L2FFG1156E offers a fully programmable alternative to ASSPs and ASICs. It is built on a cutting-edge, high-performance, low-power (HPL), 28 nm, high-k metal gate (HKMG) process technology. XC7K420T-L2FFG1156E enables an unprecedented increase in system performance with 400 I/O, 30060 Memory. This device supplys 0.97V ~ 1.03V. The Xilinx FPGAs (Field Programmable Gate Array) series XC7K420T-L2FFG1156E is an FPGA Kintex-7 Family 416960 Cells 28nm Technology 1V. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7K420T-L2FFG1156E Features

Block RAM with a built-in FIFO for on-chip data buffering, 36 Kb, twin ports.
High-speed SelectIOTM technology that is compatible with DDR3 connections of up to 1,866 Mb/s.
High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.
A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.
DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.
Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.
Utilize the MicroBlazeTM processor to quickly install embedded processing.
PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.
Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.

XC7K420T-L2FFG1156E Applications

Medical Endoscope
Small Cell Baseband
Machine vision camera
Automated manufacturing
Portable ultrasound
Industrial control
Sensor fusion
Vehicles and transportation
Embedded vision
