XC7K480T-L2FFG901I

XC7K480T-L2FFG901I Overview

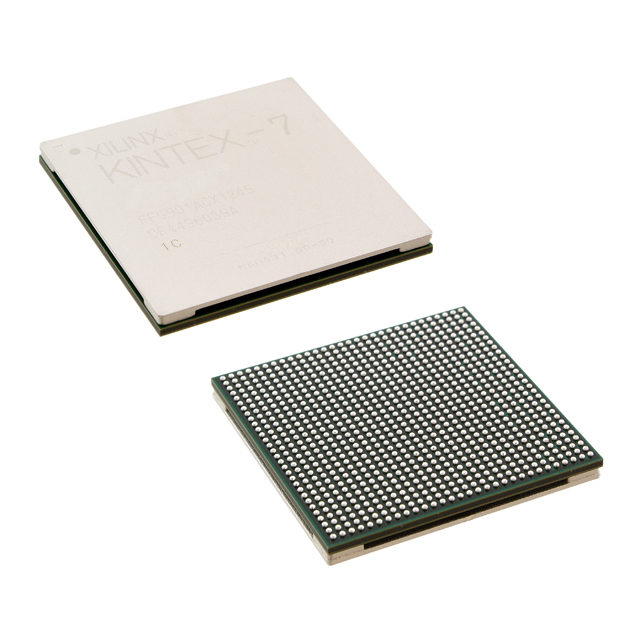

This AMD Xilinx XC7K480T-L2FFG901I belongs to the category of Field Programmable Gate Arrays (FPGAs). XC7K480T-L2FFG901I offers a fully programmable alternative to ASSPs and ASICs. It is built on a cutting-edge, high-performance, low-power (HPL), 28 nm, high-k metal gate (HKMG) process technology. XC7K480T-L2FFG901I enables an unprecedented increase in system performance with 380 I/O, 35205120 Total RAM Bits. This device supplys 0.97V ~ 1.03V. The Xilinx FPGAs (Field Programmable Gate Array) series XC7K480T-L2FFG901I is an FPGA Kintex-7 Family 477760 Cells 28nm Technology 1V. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.

XC7K480T-L2FFG901I Features

• A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.

• DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.

• Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.

• Utilize the MicroBlazeTM processor to quickly install embedded processing.

• PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.

• Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.

• Flip-chip packaging that is low-cost, wire-bonded, bare-die, and high signal integrity and allows for simple family migration in the same package. Both Pb-free versions of all packages and Pb versions of some packages are offered.

• With 28 nm, HKMG, HPL process, 1.0V core voltage process technology, and 0.9V core voltage option for even lower power, it is designed for maximum performance and lowest power.

XC7K480T-L2FFG901I Applications

• Medical Endoscope

• Small Cell Baseband

• Machine vision camera

• Automated manufacturing

• Portable ultrasound

• Industrial control

• Sensor fusion

• Vehicles and transportation

• Embedded vision

• Consumer electronics

XC7K480T-L2FFG901I Specifications
