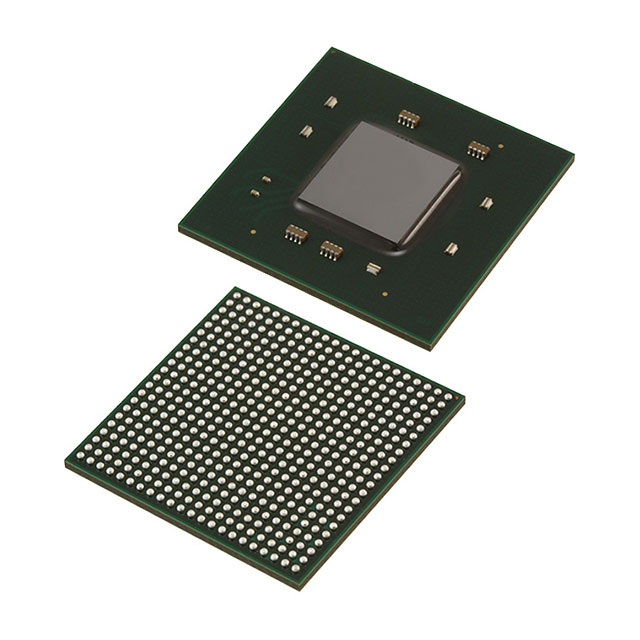

A Field Programmable Gate Array XC7K70T-1FB484I is an integrated circuit from AMD Xilinx. XC7K70T-1FB484I offers a fully programmable alternative to ASSPs and ASICs. It is built on a cutting-edge, high-performance, low-power (HPL), 28 nm, high-k metal gate (HKMG) process technology. XC7K70T-1FB484I enables an unprecedented increase in system performance with 285 I/O, 4976640 Total RAM Bits. This device supplys 0.97V ~ 1.03V. The Xilinx FPGAs (Field Programmable Gate Array) series XC7K70T-1FB484I is an FPGA Kintex-7 Family 65600 Cells 28nm Technology 1V. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Real 6-input lookup table (LUT)-based advanced high-performance FPGA logic that may be configured as distributed memory.
Block RAM with a built-in FIFO for on-chip data buffering, 36 Kb, twin ports.
High-speed SelectIOTM technology that is compatible with DDR3 connections of up to 1,866 Mb/s.
High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.
A user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.
DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.
Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.
Utilize the MicroBlazeTM processor to quickly install embedded processing.
PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.
ADAS
Industrial
Consumer
Automotive
Defense and military
Medical Endoscope
Small Cell Baseband
Machine vision camera
Automated manufacturing
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Kintex®-7 |
Package | Tray |
Product Status | Active |
Number of LABs/CLBs | 5125 |
Number of Logic Elements/Cells | 65600 |
Total RAM Bits | 4976640 |
Number of I/O | 285 |
Voltage - Supply | 0.97V ~ 1.03V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 484-BBGA, FCBGA |
Supplier Device Package | 484-FCBGA (23x23) |
Base Product Number | XC7K70 |
