XC7S100-1FGGA484C

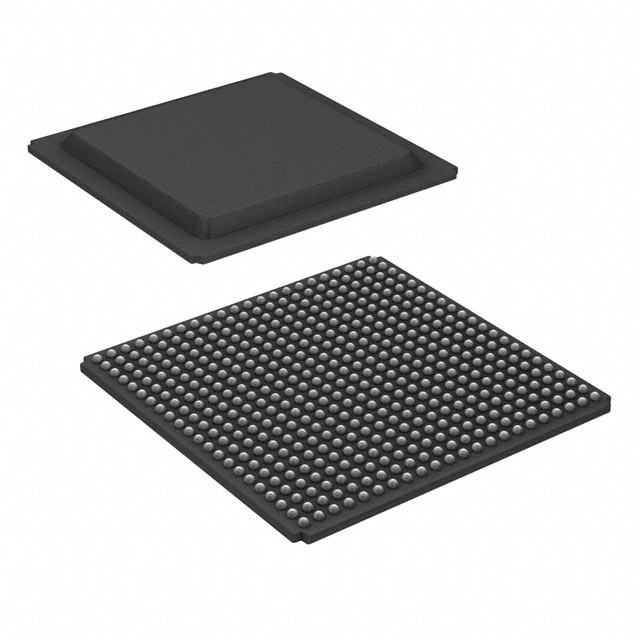

The XC7S100-1FGGA484C is a Spartan-7 series FPGA from AMD Xilinx. It is packaged in a 484-BGA and contains 102400 logic cells in total. The gadget has 338 I/Os and 8000 LABs/CLBs. It is appropriate for usage in embedded systems like field-programmable gate arrays and runs on a voltage supply range of 0.95V to 1.05V. The gadget can function in a temperature range of 0°C to 85°C and has a total RAM of 4423680 bits. The device has an ECCN of 5A002A1 and is intended for use in SMD (SMT) mounting. It is an effective and dependable option for FPGA applications. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.
a user-configurable analog interface (XADC) with dual 12-bit 1MSPS analog-to-digital converters with supply and heat sensors built right into the chip.
DSP slices with an optimized symmetric coefficient filter and a 25 x 18 multiplier, 48-bit accumulator, and pre-adder for high-performance filtering.
Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.
Flip-chip packaging that is low-cost, wire-bonded, bare-die, and high signal integrity and allows for simple family migration in the same package. Both Pb-free versions of all packages and Pb versions of some packages are offered.
With 28 nm, HKMG, HPL process, 1.0V core voltage process technology, and 0.9V core voltage option for even lower power, it is designed for maximum performance and lowest power.
Lowest Power Consumption
Shattering System Limits
Multifunction printers
Automotive driver assistance
Medical diagnostics and imaging
| Specification | Value |
| Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
| Mfr | AMD |
| Series | Spartan®-7 |
| Package | Tray |
| Product Status | Active |
| DigiKey Programmable | Not Verified |
| Number of LABs/CLBs | 8000 |
| Number of Logic Elements/Cells | 102400 |
| Total RAM Bits | 4423680 |
| Number of I/O | 338 |
| Voltage - Supply | 0.95V ~ 1.05V |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package / Case | 484-BGA |
| Supplier Device Package | 484-FPBGA (23x23) |
| Base Product Number | XC7S100 |
