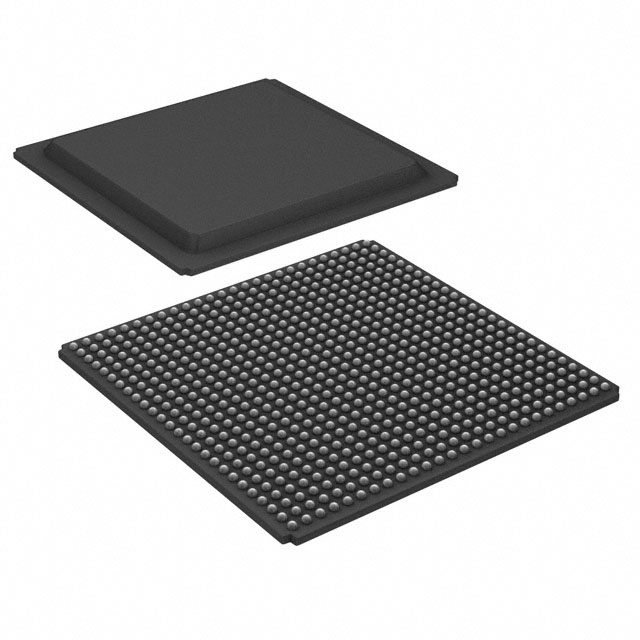

The 1265106-XC7S100-1FGGA676C is an integrated circuit designed by AMD Xilinx. This component has a package of Tray and is from the Spartan-7 series. One unit is included in the typical package. There are 400 I/Os on it, and it is installed using SMD (SMT) technology. This part has 8000 LABs/CLBs, 102400 logic cells, and a total of 4423680 RAM bits. This component requires a voltage source between 0.95V and 1.05V. It comes with a supplier device package of 676-FPBGA (27x27) and a package/case of 676-BGA. This component may operate in a temperature range of 0°C to 85°C (TJ). The open market fake threat for this component is 67%. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Advanced, high-performance lookup table (LUT) logic with six actual inputs that can be configured as distributed memory.
FIFO circuitry for on-chip data buffering is included into the 36 Kb dual-port block RAM.
DDR3 connections up to 1,866 Mb/s are supported by high-performance SelectIOTM technology.
Strong clock management tiles (CMT), integrating mixed-mode clock manager (MMCM) and phase-locked loop (PLL) blocks for high precision and minimal jitter.
MicroBlazeTM processor allows for rapid deployment of embedded processing.
For up to x8 Gen3 Endpoint and Root Port designs, an integrated block for PCI Express® (PCIe) is available.
IP and Smart camera
LTE radio and baseband
Flat Panel Displays
Driver information
Broadcast camera
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 8000 |
Number of Logic Elements/Cells | 102400 |
Total RAM Bits | 4423680 |
Number of I/O | 400 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 676-BGA |
Supplier Device Package | 676-FPBGA (27x27) |
Base Product Number | XC7S100 |
