XC7S100-2FGGA484C

XC7S100-2FGGA484C Overview

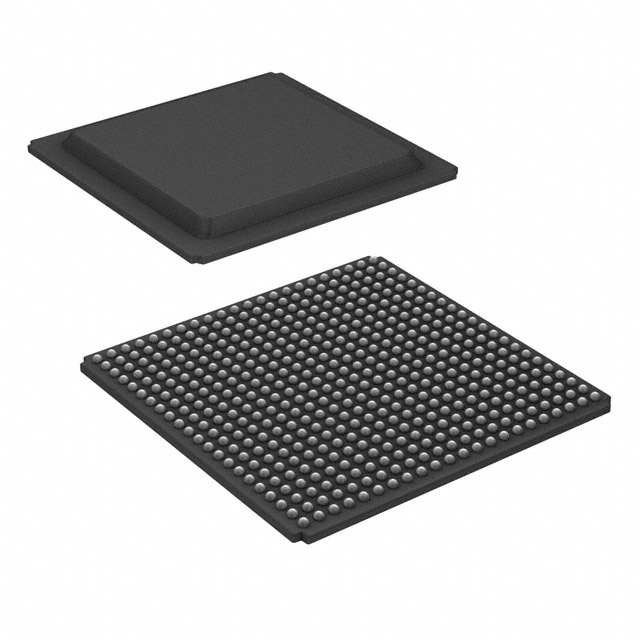

The AMD Xilinx XC7S100-2FGGA484C is an integrated circuit (IC) that falls under the category of field programmable gate arrays (FPGAs). There are 338 input/output (I/O) ports on it, and it is surface-mounted. There are 102,400 logic elements/cells and 8,000 logic array blocks (LABs/CLBs) in the integrated circuit. There are 4,423,680 bits in its 4,024 GB of RAM. From 0.95V to 1.05V is the voltage supply range. A 484-FPBGA (23x23) device package is used. Temperatures between 0°C and 85°C (TJ) are within its operating range. The ROHS3 requirements are met by this IC. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.

XC7S100-2FGGA484C Features

• Real 6-input lookup table (LUT)-based advanced high-performance FPGA logic that may be configured as distributed memory.

• Block RAM with a built-in FIFO for on-chip data buffering, 36 Kb, twin ports.

• High-speed SelectIOTM technology that is compatible with DDR3 connections of up to 1,866 Mb/s.

• Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.

• Utilize the MicroBlazeTM processor to quickly install embedded processing.

• PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.

XC7S100-2FGGA484C Applications

• Multi-function Printers

• Multi-Axis Motor Control

• Multifunction printers

• Automotive driver assistance

• Medical diagnostics and imaging

• Video and night vision equipment

• IP and Smart camera

• LTE radio and baseband
