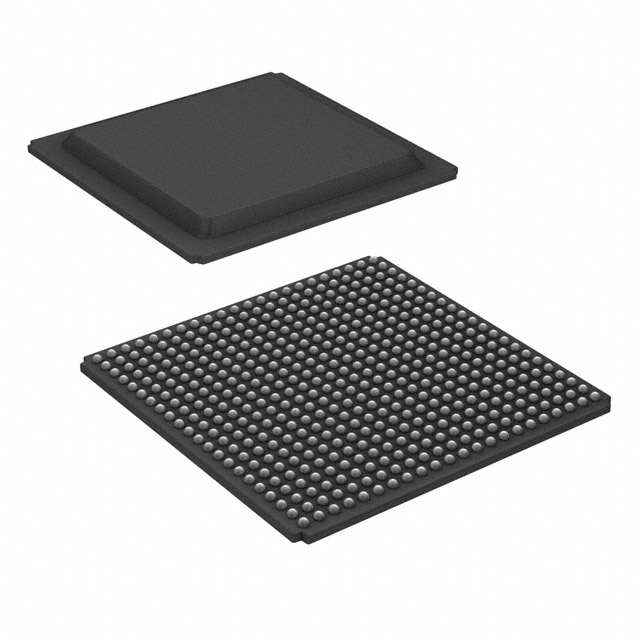

The AMD Xilinx 1323284-XC7S100-2FGGA484I is an FPGA integrated circuit that is surface mounted and packaged in a tray. It has 8000 LABs/CLBs, 102400 logic elements/cells, and 338 I/Os altogether. The device has a total RAM size of 4423680 bits and is powered by a voltage supply ranging from 0.95V to 1.05V. It is contained in a 484-FPBGA (23x23) package and operates in a temperature range of -40°C to 100°C (TJ). The appliance complies with ROHS3 and has the ECCN 3A991D. This device is appropriate for usage in embedded systems and other applications that need programmable logic. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Real 6-input lookup table (LUT)-based advanced high-performance FPGA logic that may be configured as distributed memory.
Block RAM with a built-in FIFO for on-chip data buffering, 36 Kb, twin ports.
High-speed SelectIOTM technology that is compatible with DDR3 connections of up to 1,866 Mb/s.
High-speed serial communication with integrated multi-gigabit transceivers, providing a dedicated low-power mode that is suited for chip-to-chip interfaces, with maximum speeds ranging from 600 Mb/s to 6.6 Gb/s up to 28.05 Gb/s.
Integrated PCI Express® (PCIe) block: The integrated PCI Express® (PCIe) block supports up to x8 Gen3 Endpoint and Root Port designs.
Powerful clock management tiles (CMT): The powerful clock management tiles (CMT) integrate mixed-mode clock manager (MMCM) and phase-locked loop (PLL) blocks for high precision and minimal jitter.
Dual 12-bit 1MSPS analog-to-digital converters: The dual 12-bit 1MSPS analog-to-digital converters with on-chip supply and heat sensors make up the user-configurable analog interface (XADC).
Any-to-any connectivity
Sensor fusion
Embedded vision
Software defined radio
Programmable logic controller
Machine vision camera
Portable ultrasound
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 8000 |
Number of Logic Elements/Cells | 102400 |
Total RAM Bits | 4423680 |
Number of I/O | 338 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 484-BGA |
Supplier Device Package | 484-FPBGA (23x23) |
Base Product Number | XC7S100 |
