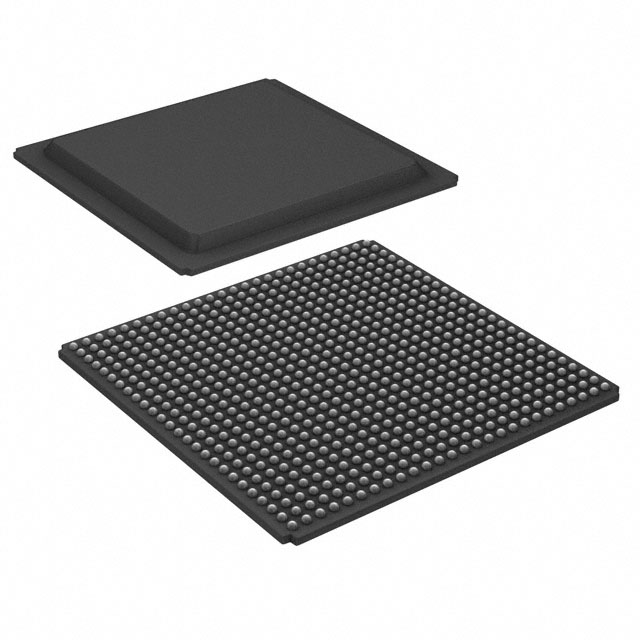

The XC7S100-2FGGA676C from AMD Xilinx is a high-performance field-programmable gate array that is ideal for use in embedded applications. It can handle even the most complex designs with ease thanks to its 8000 LABs/CLBs and 102400 logic elements/cells. It is packaged in a 676-BGA and has a supply voltage range of 0.95V to 1.05V. With an operational temperature range of 0 to 85 degrees Celsius, it can be used in a variety of settings. The XC7S100-2FGGA676C is ideal for applications that need a lot of memory because it also has a total RAM of 4423680 bits. It comes in a tray container and can be mounted on a surface. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.
Flip-chip packaging that is low-cost, wire-bonded, bare-die, and high signal integrity and allows for simple family migration in the same package. Both Pb-free versions of all packages and Pb versions of some packages are offered.
Utilize the MicroBlazeTM processor to quickly install embedded processing.
PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.
With 28 nm, HKMG, HPL process, 1.0V core voltage process technology, and 0.9V core voltage option for even lower power, it is designed for maximum performance and lowest power.
Automotive driver assistance
Driver information
Broadcast camera
Medical diagnostics and imaging
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 8000 |
Number of Logic Elements/Cells | 102400 |
Total RAM Bits | 4423680 |
Number of I/O | 400 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 676-BGA |
Supplier Device Package | 676-FPBGA (27x27) |
Base Product Number | XC7S100 |
