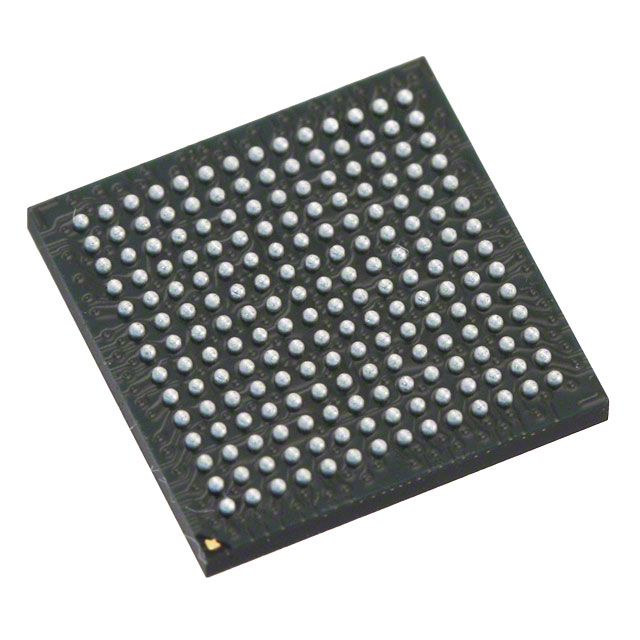

Field programmable gate array (FPGA) XC7S15-1CPGA196I is produced by AMD Xilinx. With a total of 368640 RAM bits, 12800 logic elements/cells, 100 I/O, and 1000 LABs/CLBs, it has a total of 100 I/O. It can work in a temperature range of -40°C to 100°C and has a voltage supply of 0.95V to 1.05V. It has a supplier device packaging with a 196-CSPBGA (8x8) standard and complies with ROHS3. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
Utilize the MicroBlazeTM processor to quickly install embedded processing.
PCI Express® (PCIe) integrated block supports up to x8 Gen3 Endpoint and Root Port designs.
Phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks are combined in powerful clock management tiles (CMT) for high precision and low jitter.
Numerous configuration options, including HMAC/SHA-256 authentication, built-in SEU detection and correction, and support for common memory types.
Flip-chip packaging that is low-cost, wire-bonded, bare-die, and high signal integrity and allows for simple family migration in the same package. Both Pb-free versions of all packages and Pb versions of some packages are offered.
With 28 nm, HKMG, HPL process, 1.0V core voltage process technology, and 0.9V core voltage option for even lower power, it is designed for maximum performance and lowest power.
MicroBlaze™ processor: The MicroBlaze™ processor is a soft processor that can be used to quickly deploy embedded processing.
36 Kb dual-port block RAM: The 36 Kb dual-port block RAM has integrated FIFO circuitry for on-chip data buffering.
High-performance SelectIO™ technology: The high-performance SelectIO™ technology supports DDR3 interfaces up to 1,866 Mb/s.
LTE radio and baseband: Spartan-7 FPGAs are used in LTE radio and baseband applications to provide high-speed data transmission and signal processing.
IP and Smart camera: Spartan-7 FPGAs are used in IP and Smart cameras to provide high-performance image processing and data analysis.
Multi-function Printers: Spartan-7 FPGAs are used in multi-function printers to provide high-speed printing, scanning, and copying.
Automotive driver assistance: Spartan-7 FPGAs are used in automotive driver assistance applications to provide features such as adaptive cruise control and lane departure warning.
Medical diagnostics and imaging: Spartan-7 FPGAs are used in medical diagnostics and imaging applications to provide high-performance image processing and data analysis.
Multi-Axis Motor Control: Spartan-7 FPGAs are used in multi-axis motor control applications to provide precise and efficient control of motors.
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1000 |
Number of Logic Elements/Cells | 12800 |
Total RAM Bits | 368640 |
Number of I/O | 100 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 100°C (TJ) |
Package / Case | 196-TFBGA, CSBGA |
Supplier Device Package | 196-CSPBGA (8x8) |
Base Product Number | XC7S15 |
