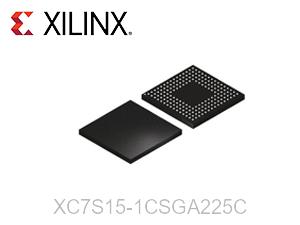

XC7S15-1CSGA225C

XC7S15-1CSGA225C Overview

Designed for embedded applications, the AMD Xilinx XC7S15-1CSGA225C is a high-performance FPGA (Field Programmable Gate Array) integrated circuit. With 1000 LABs/CLBs and 100 I/O pins, it is perfect for tiny designs. The system has 12800 logic components (cells) and 368640 RAM bits overall. It comes in a 225-CSPBGA (13x13) packaging and has a voltage supply range of 0.95V to 1.05V. 0°C to 85°C (TJ) is the operational temperature range. This FPGA features a special capability that enables field programming and reprogramming, providing flexibility during the design process. It is more environmentally friendly because it complies with ROHS3. View Substitutes & Alternatives, datasheets, stock, pricing from Vemeko, as well as other FPGAs goods, at www.vemeko.com.

XC7S15-1CSGA225C Features

• Integrated surveillance and security

• Integrating discrete analog and monitoring circuitry with XADC and SYSMON

• Expanding system I/O at a lower cost

• Optional core voltages of 0.95 V or 1.0 V

• Reduced overall power by 50% compared to 45 nm generation devices

• Performance that is 30% faster than 45 nm generation devices

• 1.25 Gb/s or more LVDS

• Peak DDR3-800 memory bandwidth of 25.6 Gbps with a soft, adaptable memory controller

• Vivado® HLx Design Suite WebPackTM-enabled

• Vivado IP Integrator's correct-by-construction block-level design

• IP reuse, a scalable, efficient design, and extensive tools

XC7S15-1CSGA225C Applications

• Consumer

• Automotive

• Medical Endoscope

• Small Cell Baseband

• Machine vision camera

• Portable ultrasound

• Industrial control

• Sensor fusion

• Embedded vision

Product Availability Disclaimer

Product information on this page is provided for identification and sourcing reference purposes. A product listing does not indicate that VEMEKO currently holds physical inventory of the listed part number. Availability, manufacturer, source, date code, packaging, condition and lead time are confirmed separately at the quotation stage.

Trademark Notice

AMD, Xilinx, Zynq, Kintex, Virtex and other related trademarks are the property of Advanced Micro Devices, Inc. or its affiliates. VEMEKO is an independent electronic component sourcing company and is not represented as an authorized distributor of AMD unless expressly stated and documented for a specific transaction.

XC7S15-1CSGA225C Specifications
