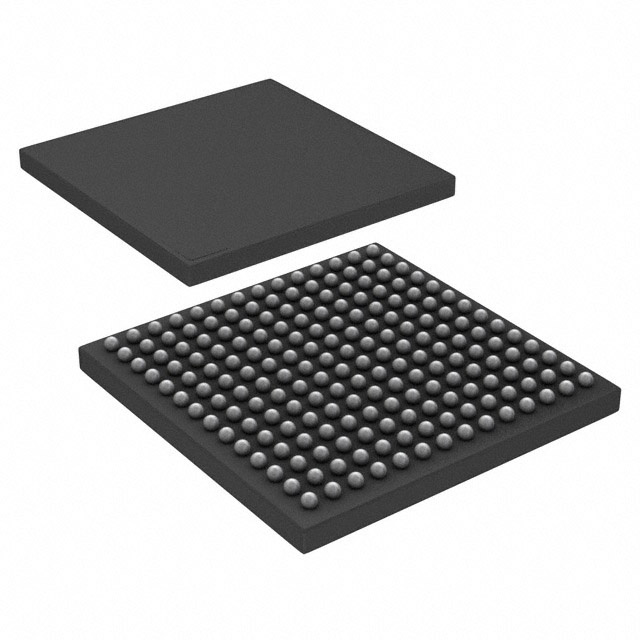

XC7S15-1FTGB196I

XC7S15-1FTGB196I Overview

XC7S15-1FTGB196I are made up of a FIELD PROGRAMMABLE GATE ARRAY. The I/Os are created to make data transfer more organized. There are 12800 logic elements or cells in a basic building block. FPGA chips require a power source of 1V volts to function. The FPGA module's Surface Mount-slot connector can be used to link it to the development board. It requires a power supply between 0.95V and 1.05V to function. A type of FPGA that is a member of the Spartan?-7 family is the Spartan?-7 series FPGA. When the device is in use, Fpga chips are required to maintain the operating temperature within the range of -40°C and 100°C TJ. For the sake of reducing space, this FPGA model is packed in Tray. With 196 terminations, Fpga chips are designed. The amount of memory offered by a device like this is 368640 RAM bits, which is a sizable number. For the software to operate successfully, it is essential that the RAM si45kBe of this FPGA module reaches 45kB. An array of 1000 latches, or CLBs, make up the FPGA. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.

XC7S15-1FTGB196I Features

• MicroBlaze™ processor: The MicroBlaze™ processor is a soft processor that can be used to quickly deploy embedded processing.

• 36 Kb dual-port block RAM: The 36 Kb dual-port block RAM has integrated FIFO circuitry for on-chip data buffering.

• High-performance SelectIO™ technology: The high-performance SelectIO™ technology supports DDR3 interfaces up to 1,866 Mb/s.

• Integrated PCI Express® (PCIe) block: The integrated PCI Express® (PCIe) block supports up to x8 Gen3 Endpoint and Root Port designs.

• Powerful clock management tiles (CMT): The powerful clock management tiles (CMT) integrate mixed-mode clock manager (MMCM) and phase-locked loop (PLL) blocks for high precision and minimal jitter.

• Dual 12-bit 1MSPS analog-to-digital converters: The dual 12-bit 1MSPS analog-to-digital converters with on-chip supply and heat sensors make up the user-configurable analog interface (XADC).

XC7S15-1FTGB196I Applications

• Automotive

• Medical Endoscope

• Small Cell Baseband

• Machine vision camera

• Portable ultrasound

• Industrial control

• Consumer electronics

• Medical devices

• Any-to-any connectivity

• Programmable logic controller

XC7S15-1FTGB196I Specifications
