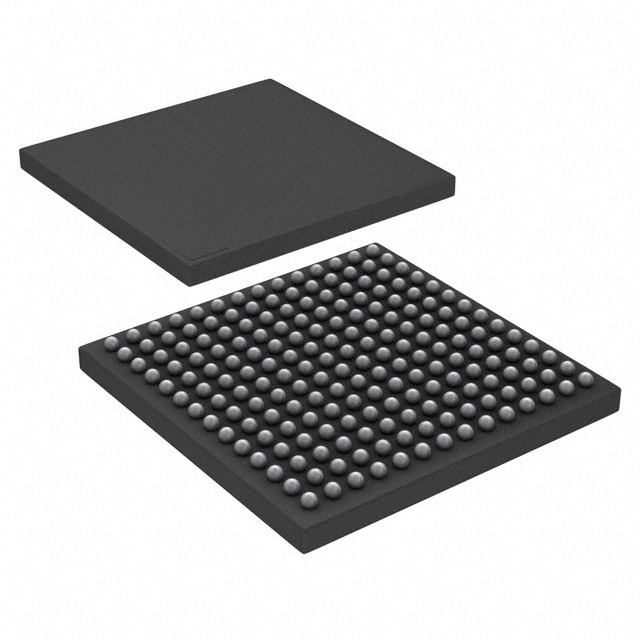

The XC7S15-2FTGB196C is an integrated circuit (IC) from the Spartan®-7 series of embedded field programmable gate arrays (FPGAs). The typical package quantity for this integrated circuit is 1, and it comes in a tray package. With 100 input/output (I/O) ports and 1000 look-up tables/carry logic blocks (LABs/CLBs), it is mounted as a surface mount device (SMD). A total of 368640 random access memory (RAM) bits are present in the XC7S15-2FTGB196C's 12800 logic elements/cells. It can be used in temperatures ranging from 0°C to 85°C (TJ) and operates on a voltage supply of 0.95V to 1.05V. The ECCN for this IC is EAR99, and it features a 196-LBGA, CSPBGA package/case. In the open market, it has a false threat percentage of 53% and is produced by AMD Xilinx. View Substitutes & Alternatives, datasheets, stock, pricing from Authorized Distributors, as well as other FPGAs goods, at www.vemeko.com.
MicroBlaze soft IP processor
Integrated surveillance and security
Integrating discrete analog and monitoring circuitry with XADC and SYSMON
Expanding system I/O at a lower cost
Optional core voltages of 0.95 V or 1.0 V
Reduced overall power by 50% compared to 45 nm generation devices
Performance that is 30% faster than 45 nm generation devices
Small Cell Baseband
Professional Cameras
Machine Vision
Carrier Ethernet Backhaul
Multi-function Printers
Multi-Axis Motor Control
Machine Vision
Programmable Logic Controller
Specification | Value |
Category | Integrated Circuits (ICs) Embedded FPGAs (Field Programmable Gate Array) |
Mfr | AMD |
Series | Spartan®-7 |
Package | Tray |
Product Status | Active |
DigiKey Programmable | Not Verified |
Number of LABs/CLBs | 1000 |
Number of Logic Elements/Cells | 12800 |
Total RAM Bits | 368640 |
Number of I/O | 100 |
Voltage - Supply | 0.95V ~ 1.05V |
Mounting Type | Surface Mount |
Operating Temperature | 0°C ~ 85°C (TJ) |
Package / Case | 196-LBGA, CSPBGA |
Supplier Device Package | 196-CSBGA (15x15) |
Base Product Number | XC7S15 |
